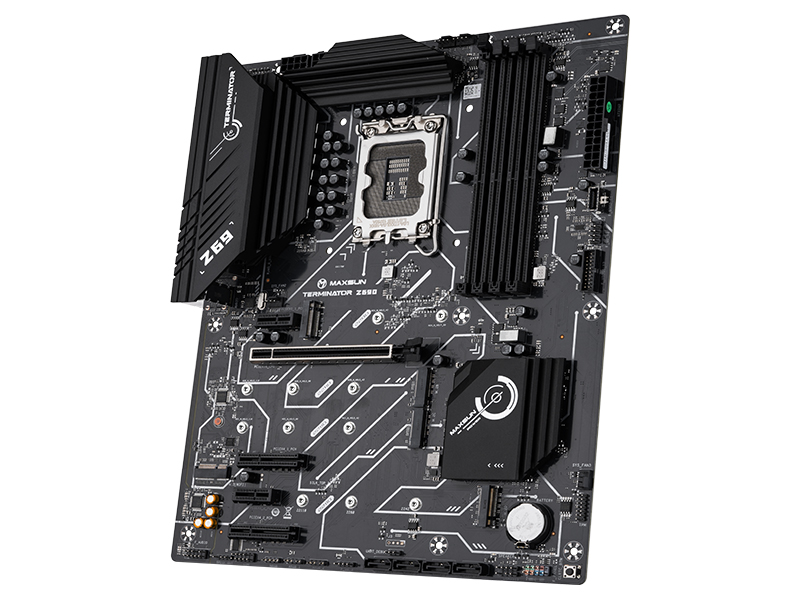

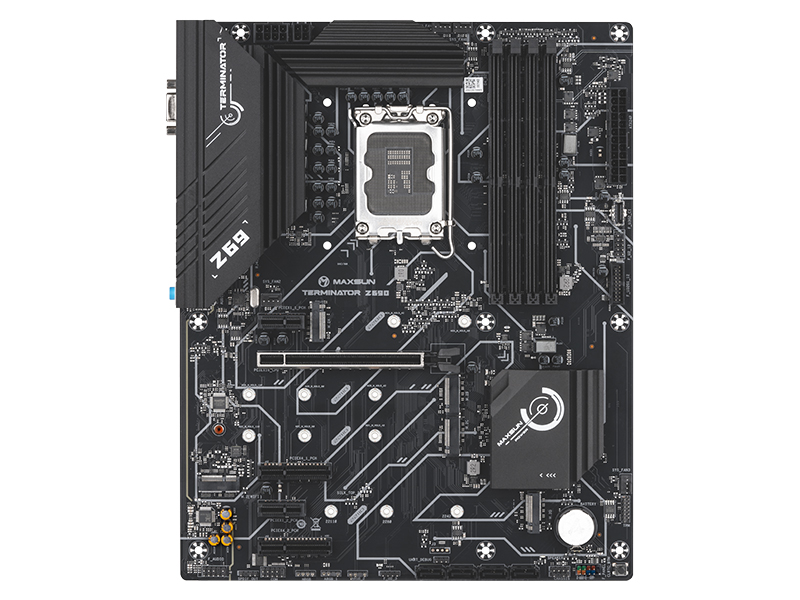

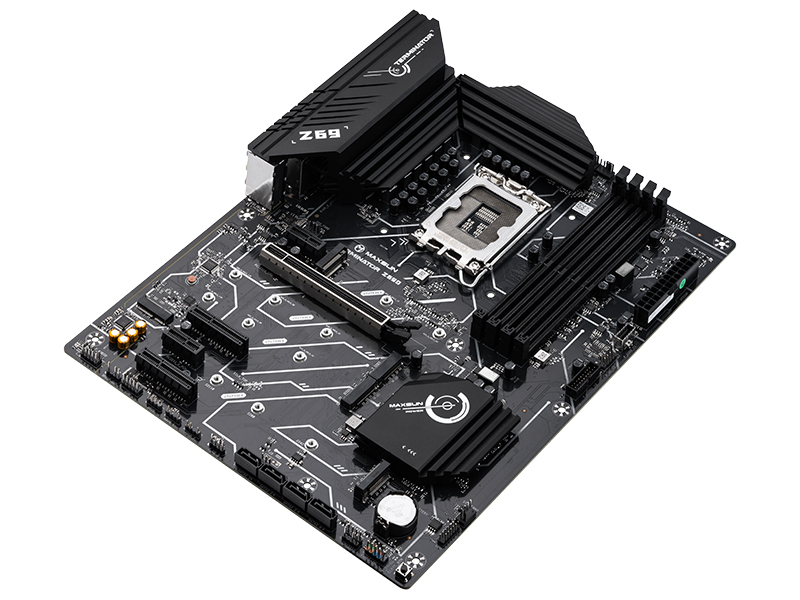

Terminator Z690 D4

Description |Specifications |Driver/BIOS

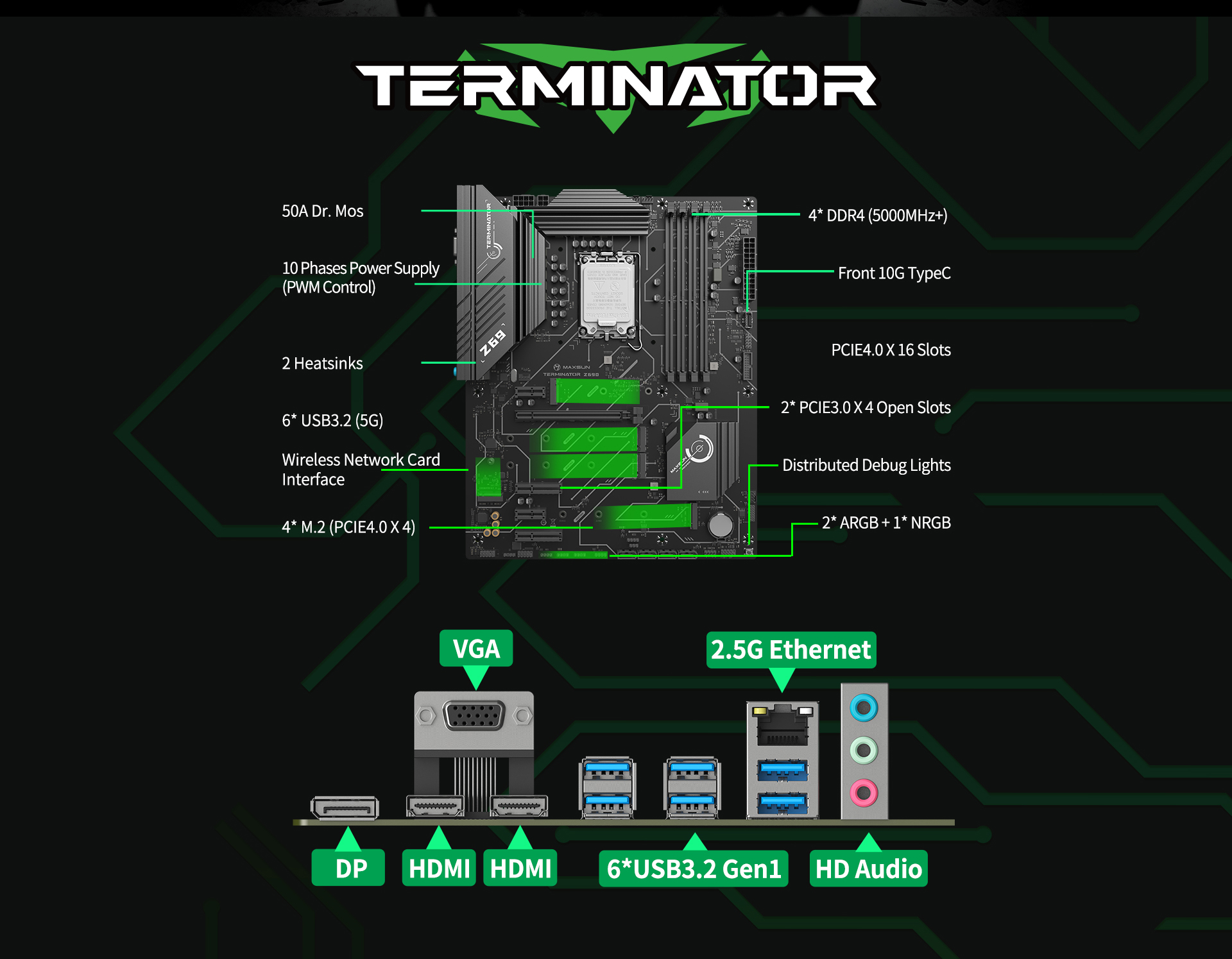

PRODUCT SPECIFICATIONS Terminator Z690 D4
Chipset/Socket Intel Z690 / LGA 1700
Form Factor ATX (30.5*24.5cm)
Memory Support 4*DDR4, Overclocking:5000MHz

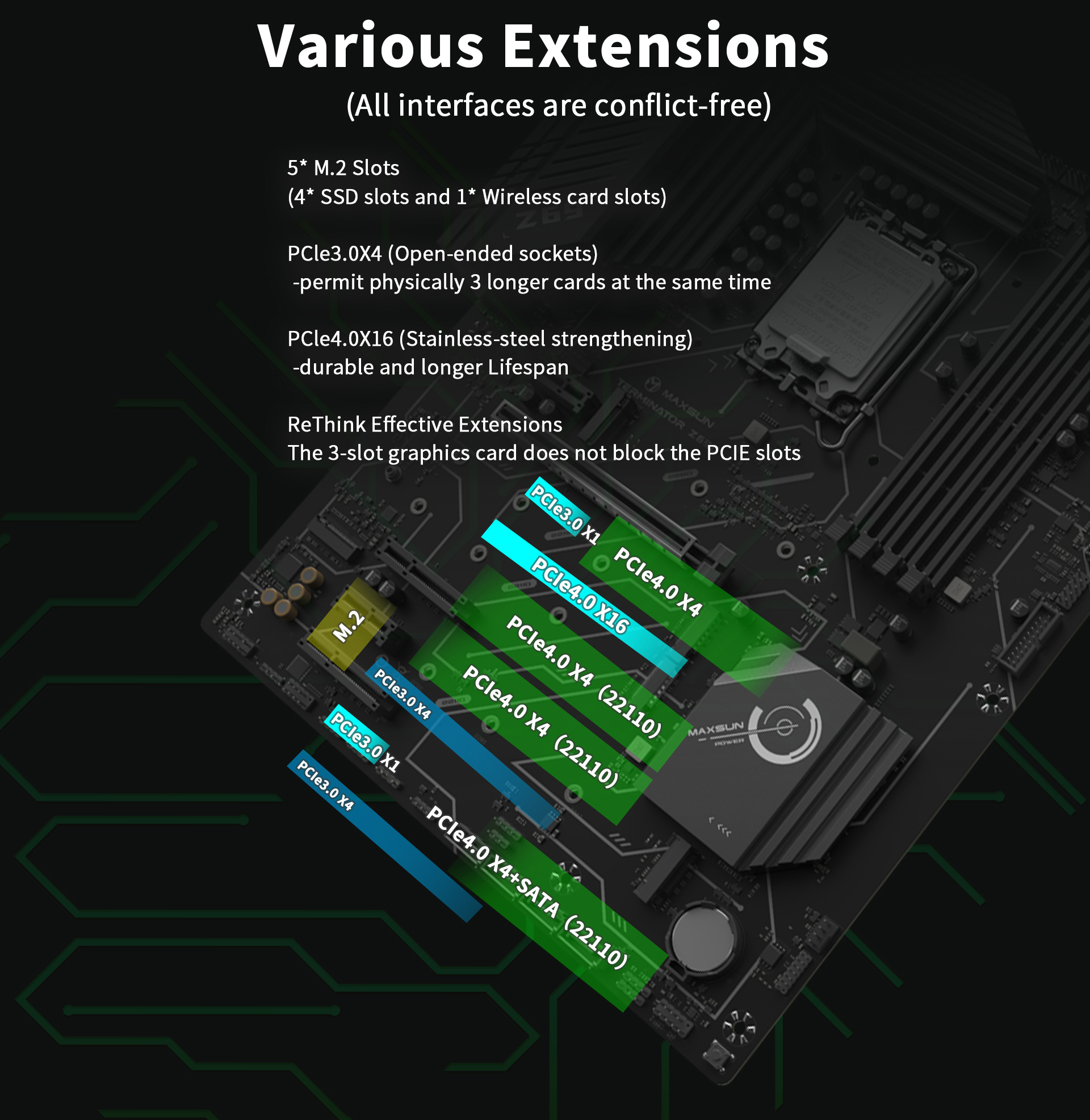

PCIe 1*PCIE4.0x16, 2*PCIE3.0x4, 2*PCIE3.0x1

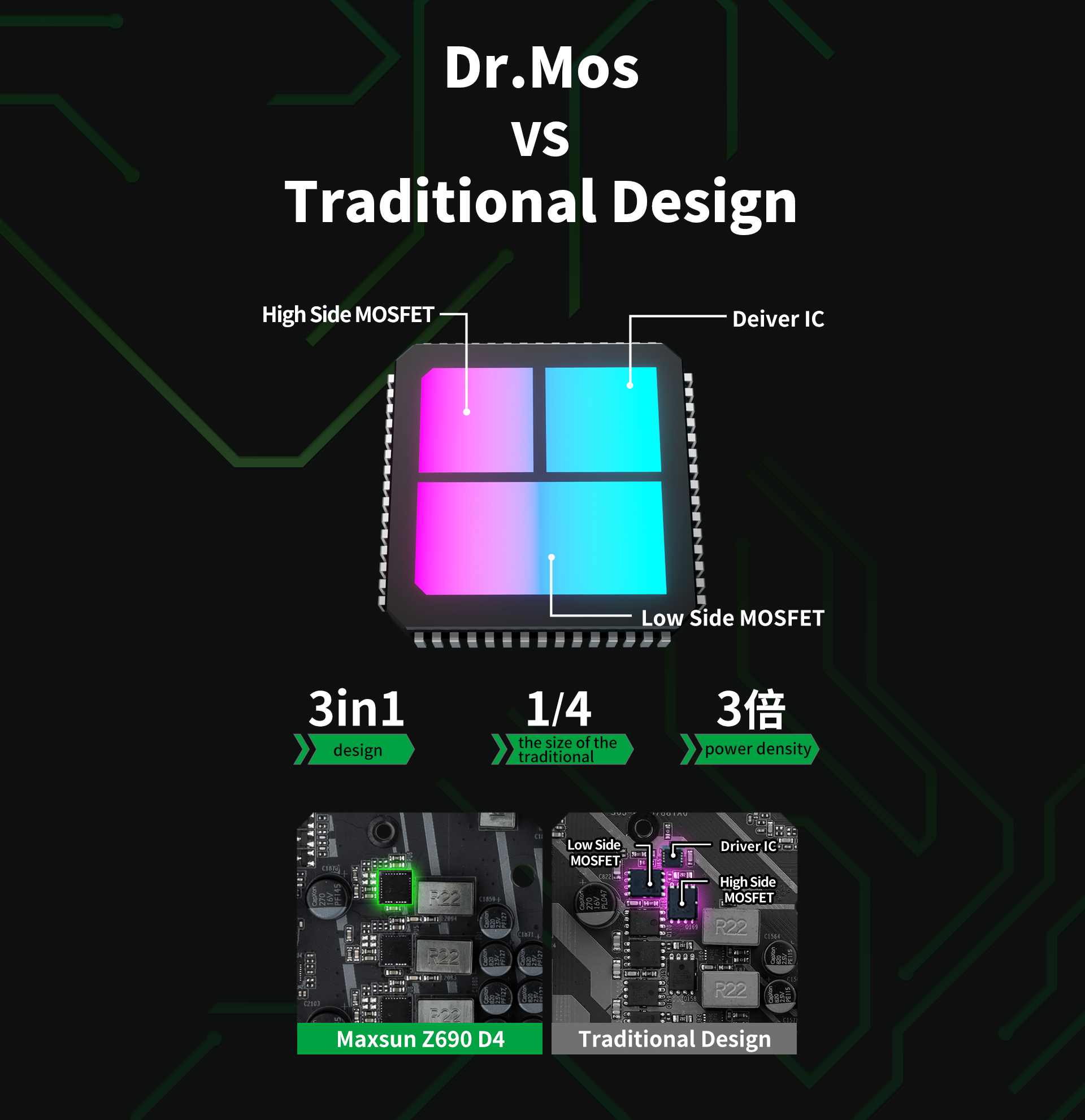

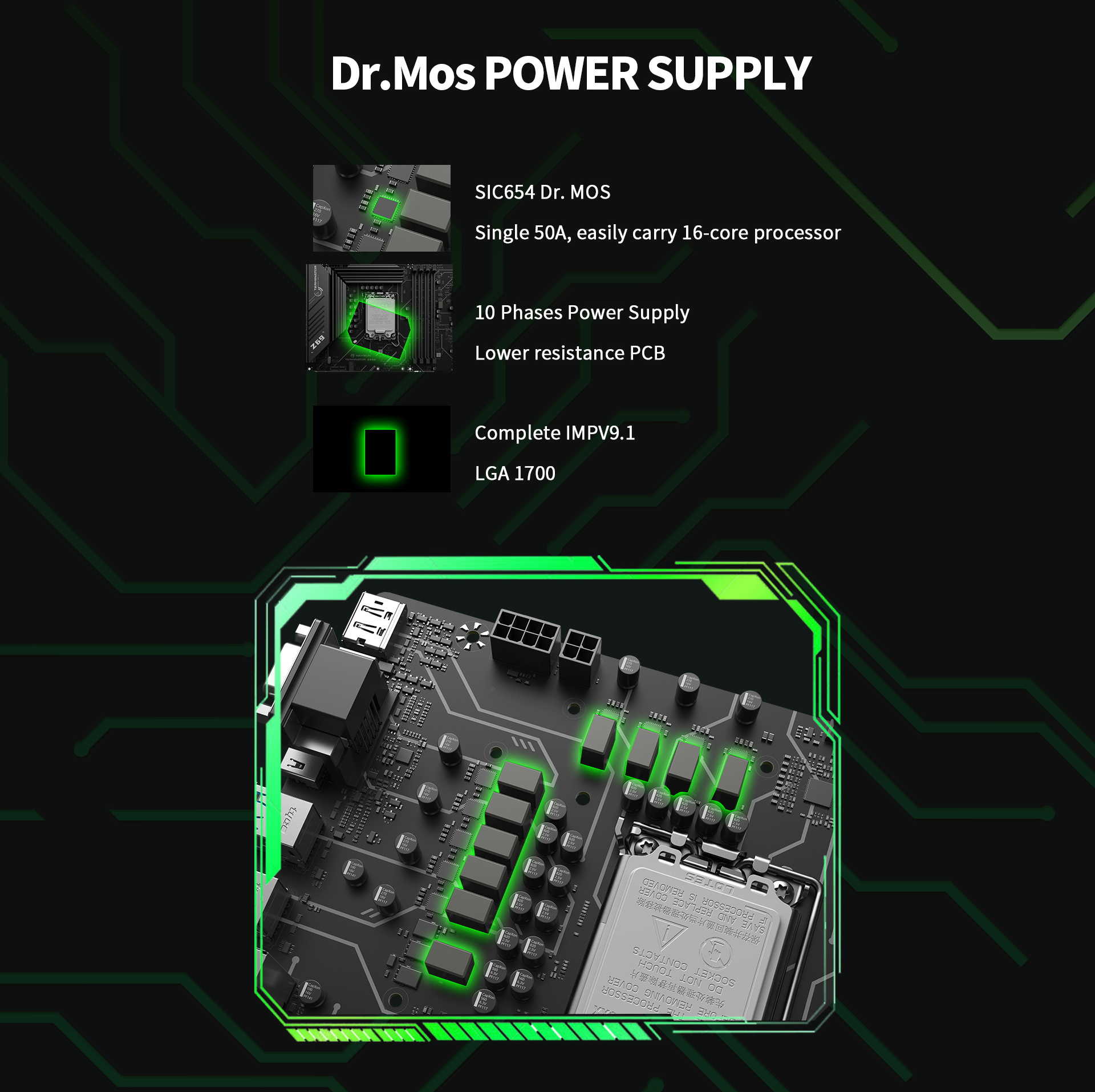

Power Support 8+1+1 Power Stages Rated for 50A Dr.Mos
M.2 Slots 1*PCIE4.0x4(2280), 2*PCIE4.0*4(22110), 1*PCIE4.0*4(22110,NVME/SATA Auto Switch)
SATA Interface 4*SATA3(6G)

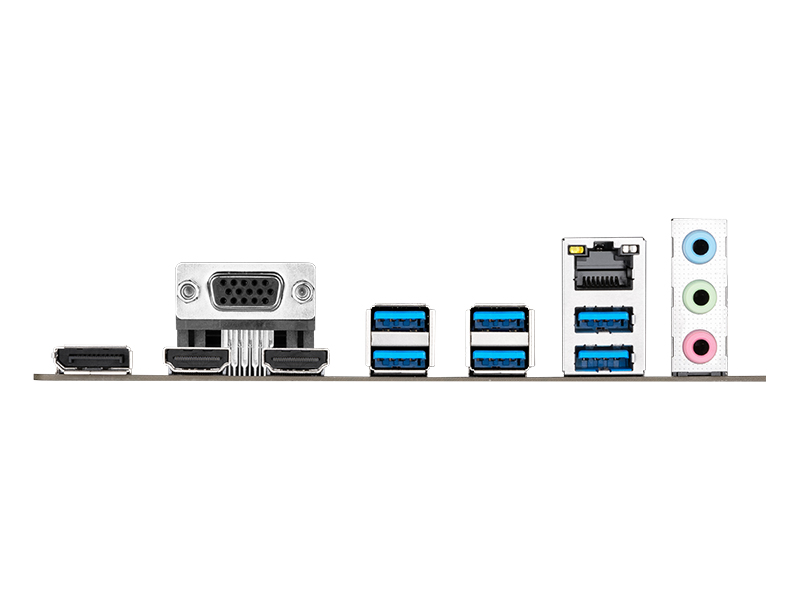

Video  2*HDMI, DP, VGA
USB(rear) 6*USB3.2 Gen1(5G)
USB(front) 1*USB3.2 Gen1(5G), 1*Type C(10G), 2*USB2.0(9pin+4pin)
Audio/Ethernet HD Stereo Card/2.5G Ethernet

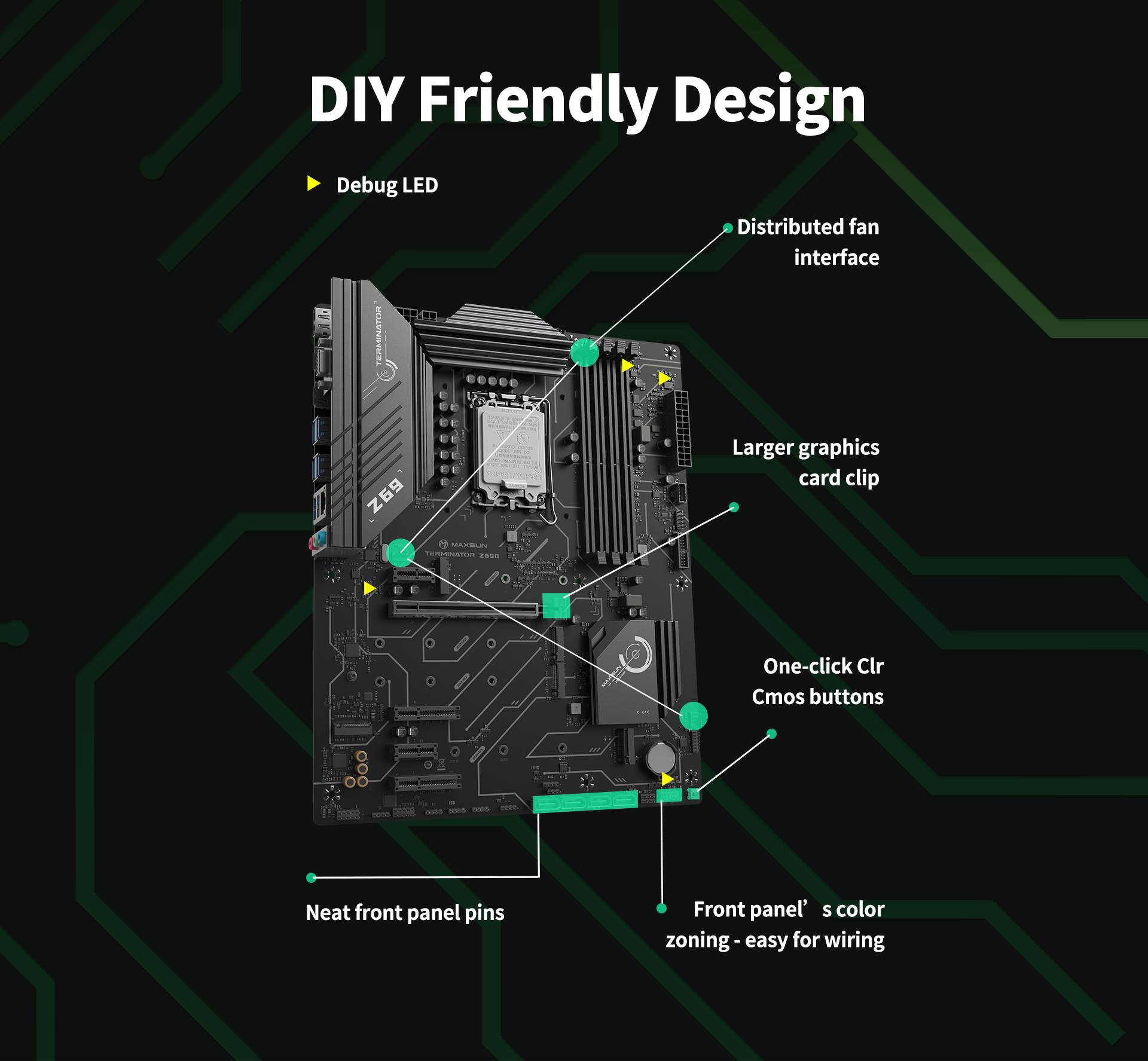

Quick Maintenance Debug Light&CLR CMOS
RGB 2*ARGB(3Pin,5V)+1*NRGB(4Pin, 12V)
