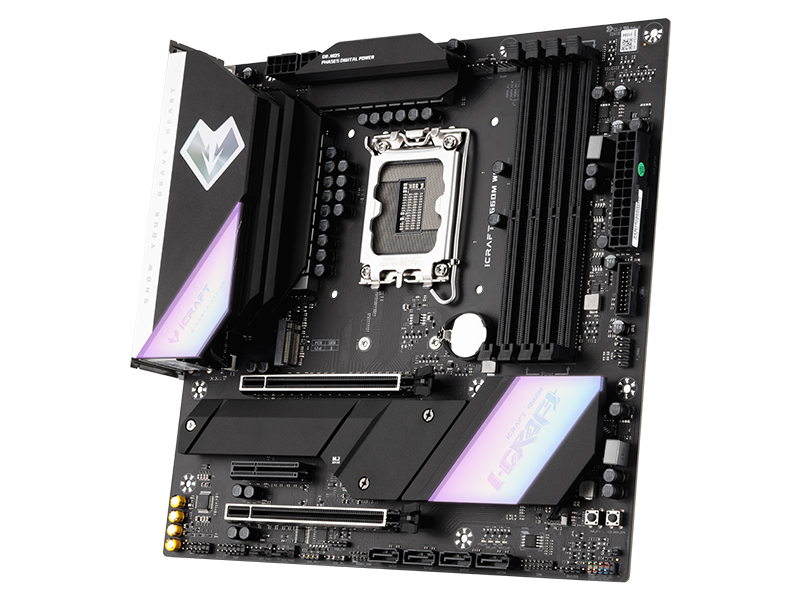

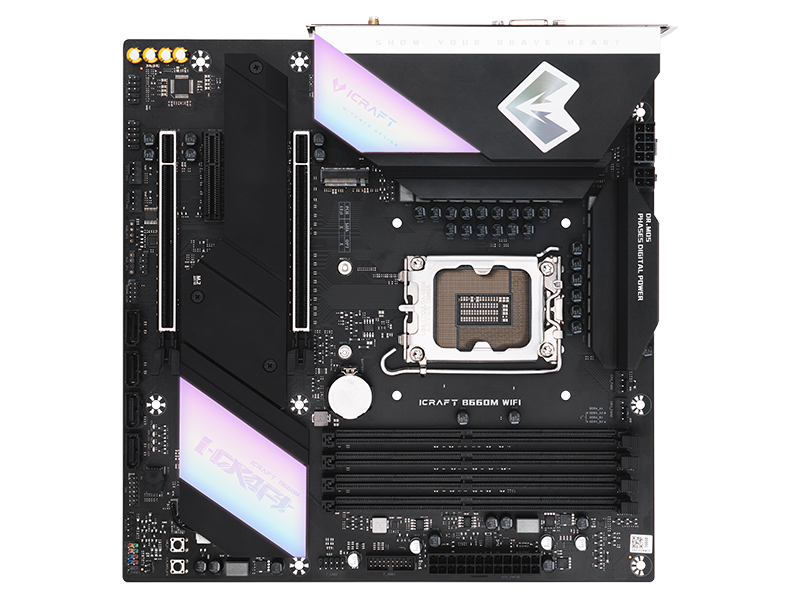

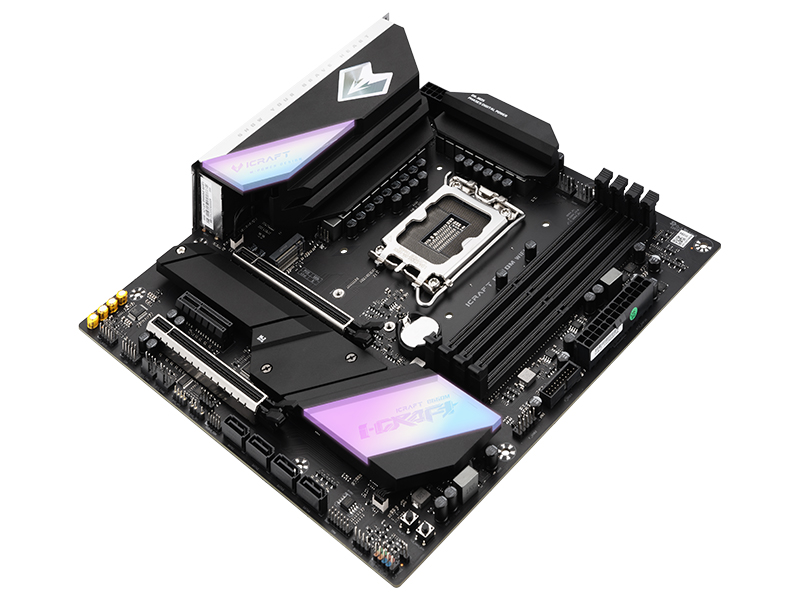

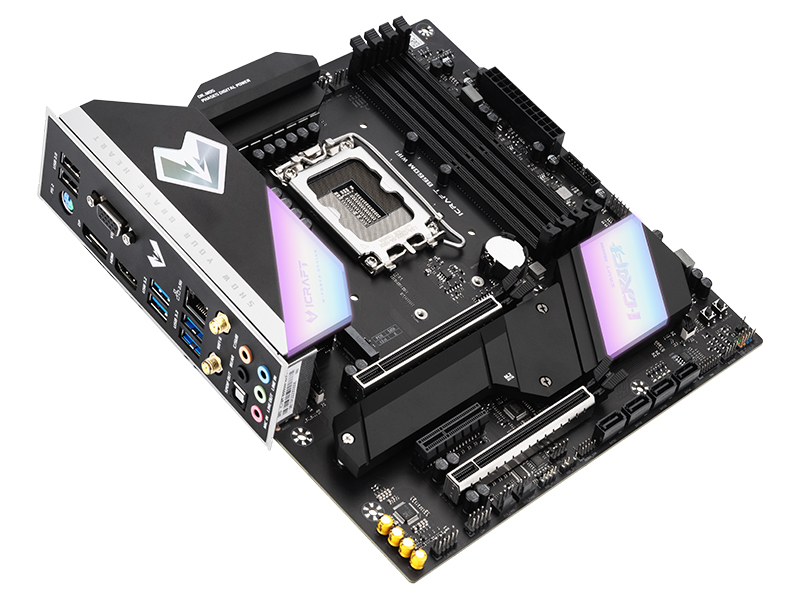

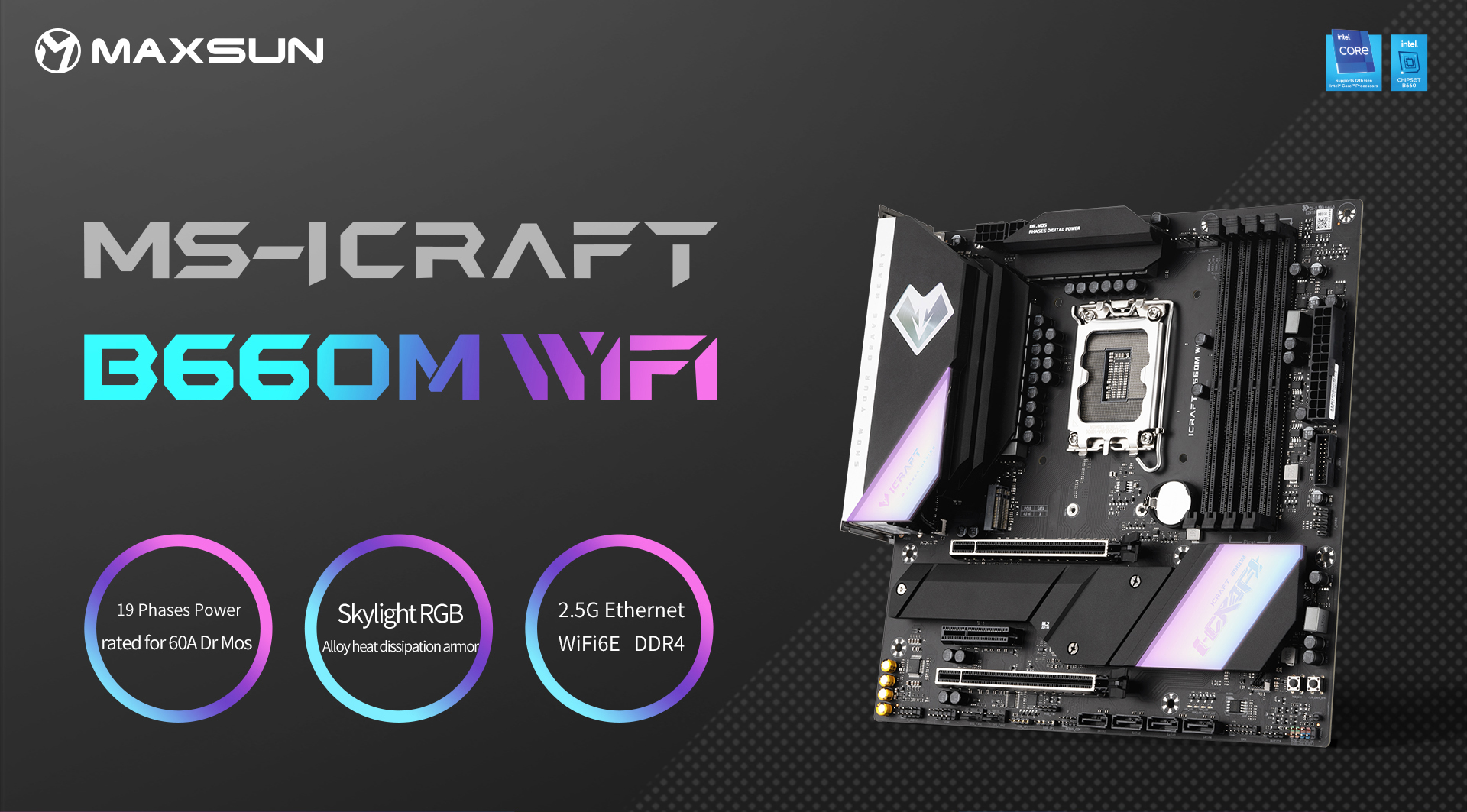

iCraft B660M WIFI

Description |Specifications |Driver/BIOS
PRODUCT SPECIFICATIONS iCraft B660M WIFI
Chipset/Socket Intel B660 / LGA 1700
Form Factor MATX (24.4*24.4cm)

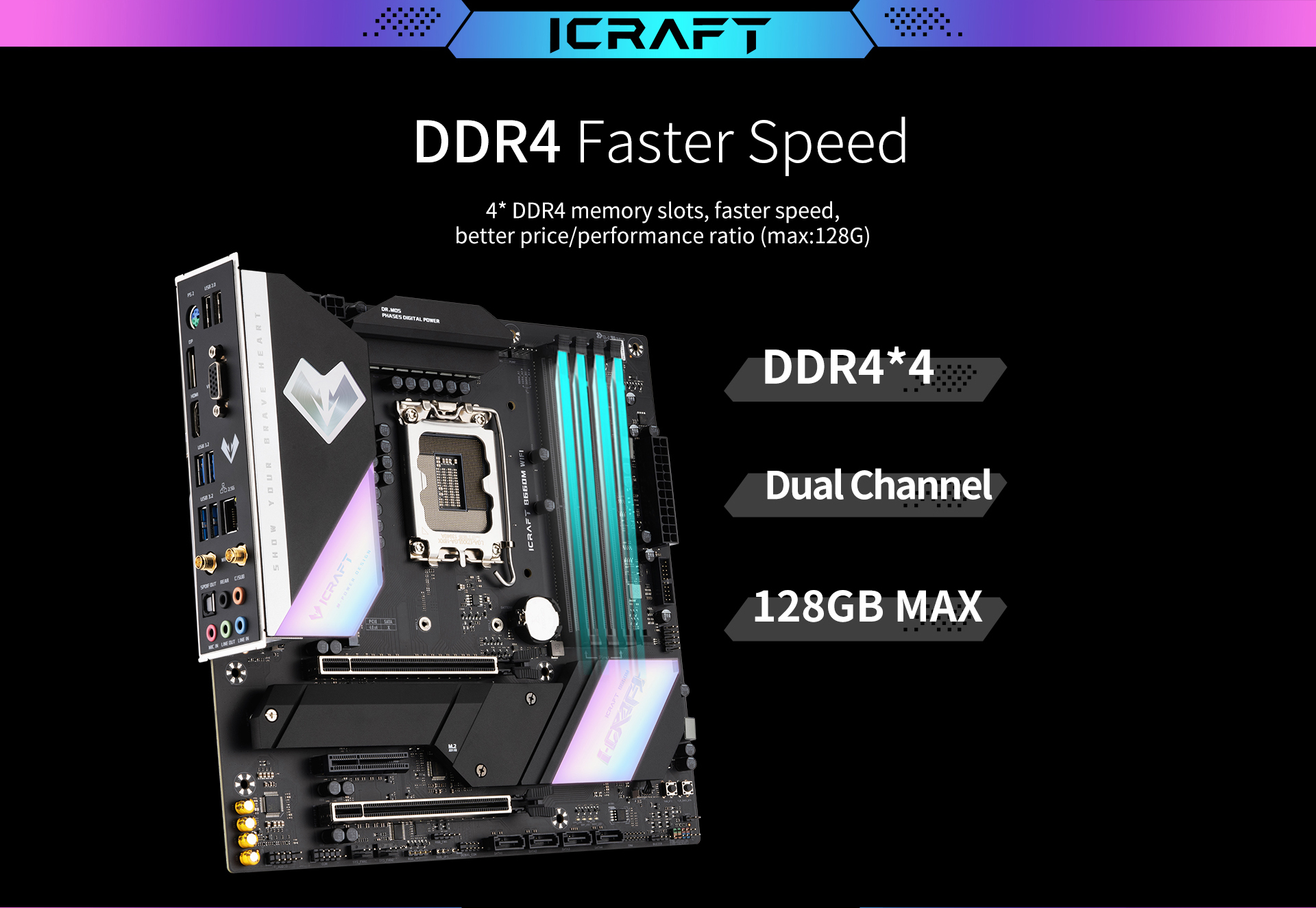

Memory Support 4*DDR4, Max-128G

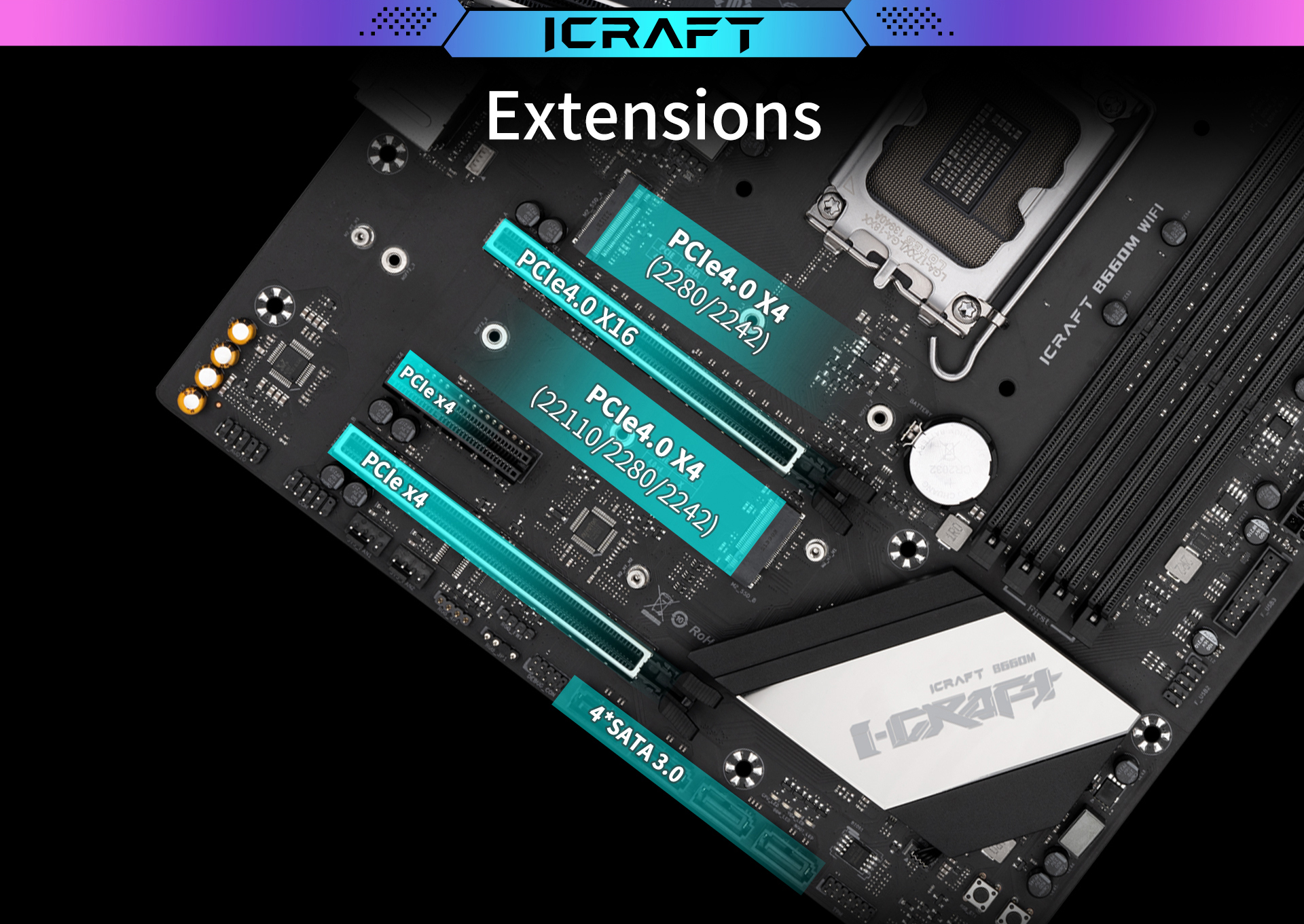

PCIe 1*PCIE4.0x16, 2*PCIEx4
Power Support 19 Power Stages Rated for 60A Dr.Mos

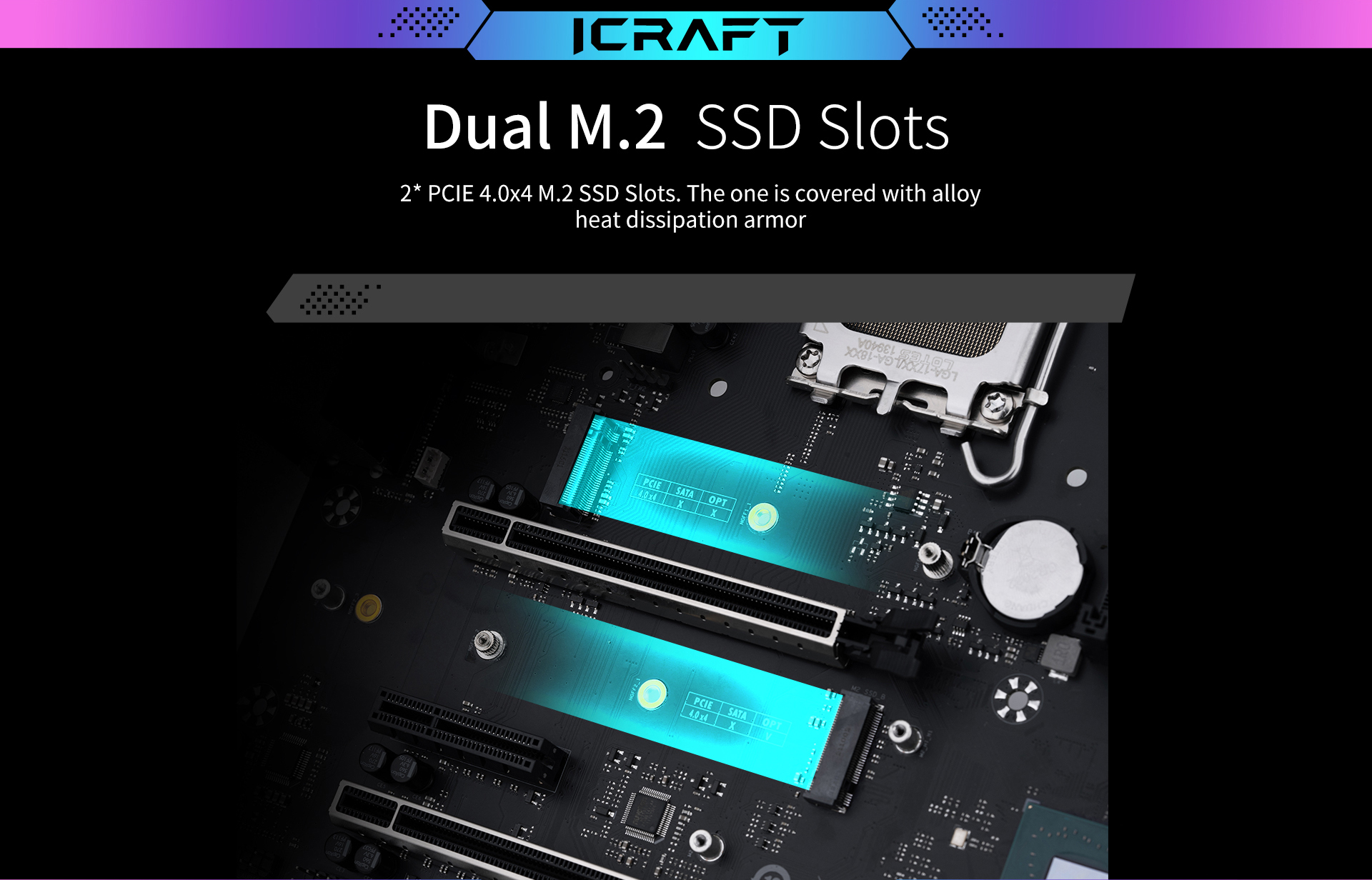

M.2 Slots 1*PCIE4.0x4(2280), 1*PCIE4.0*4(22110)
SATA Interface 4*SATA3(6G)

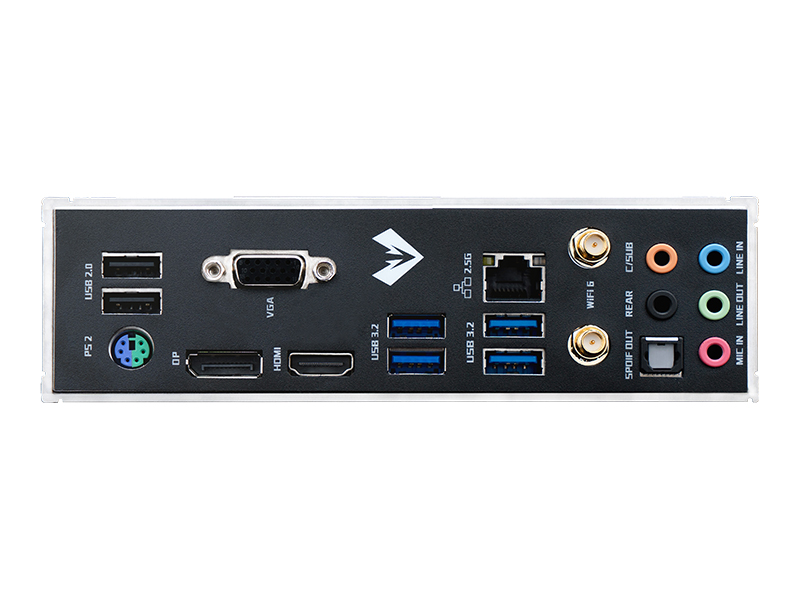

Video  1*HDMI2.0, 1*DP1.4, 1*VGA
USB(rear)  4*USB3.2 Gen1, 2*USB2.0
USB(front) 1*USB3.2 Gen1 pin, 1*USB2.0 pin

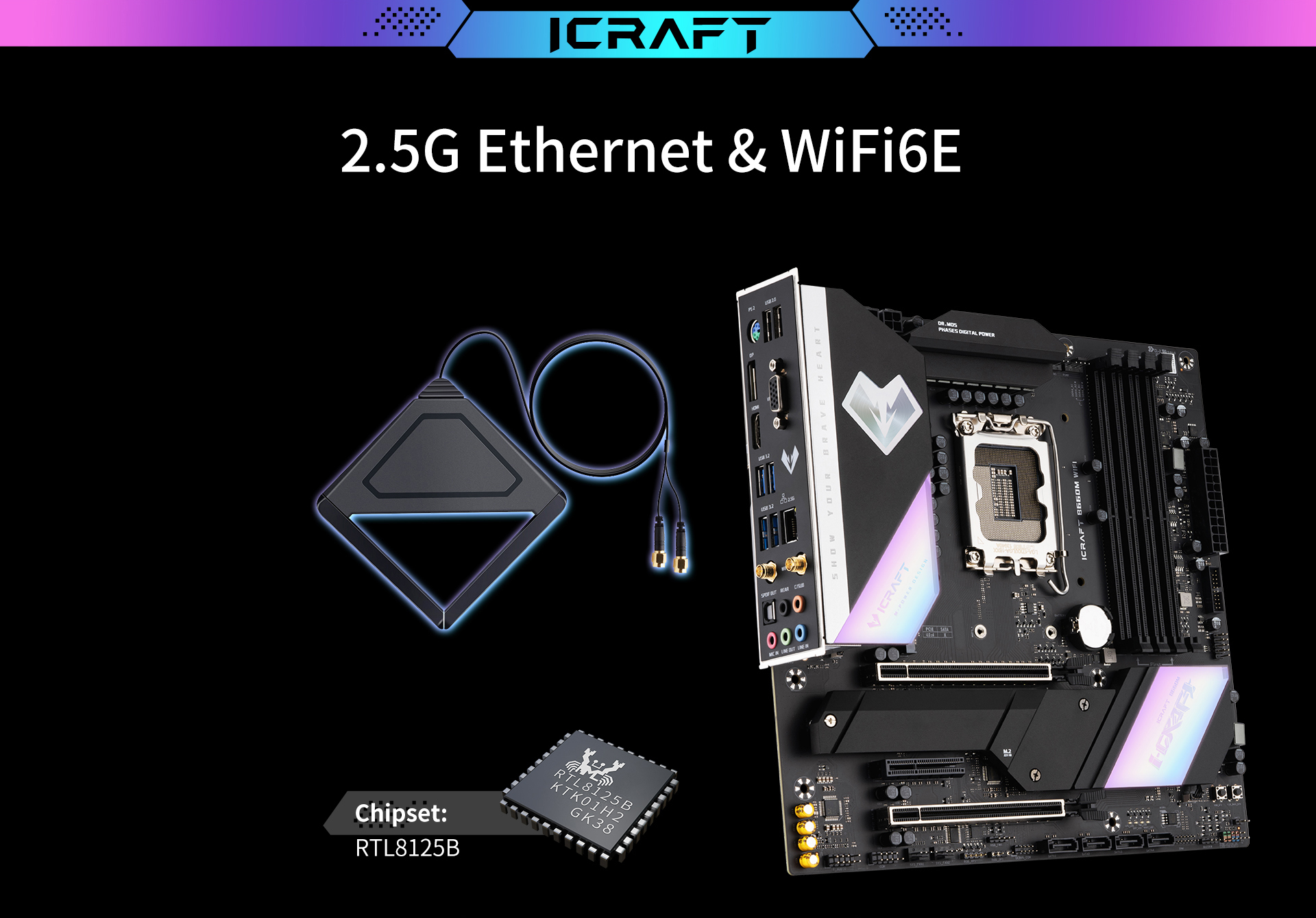

Audio/Ethernet 7.1 Channel Realtek ALC897/2.5G Ethernet

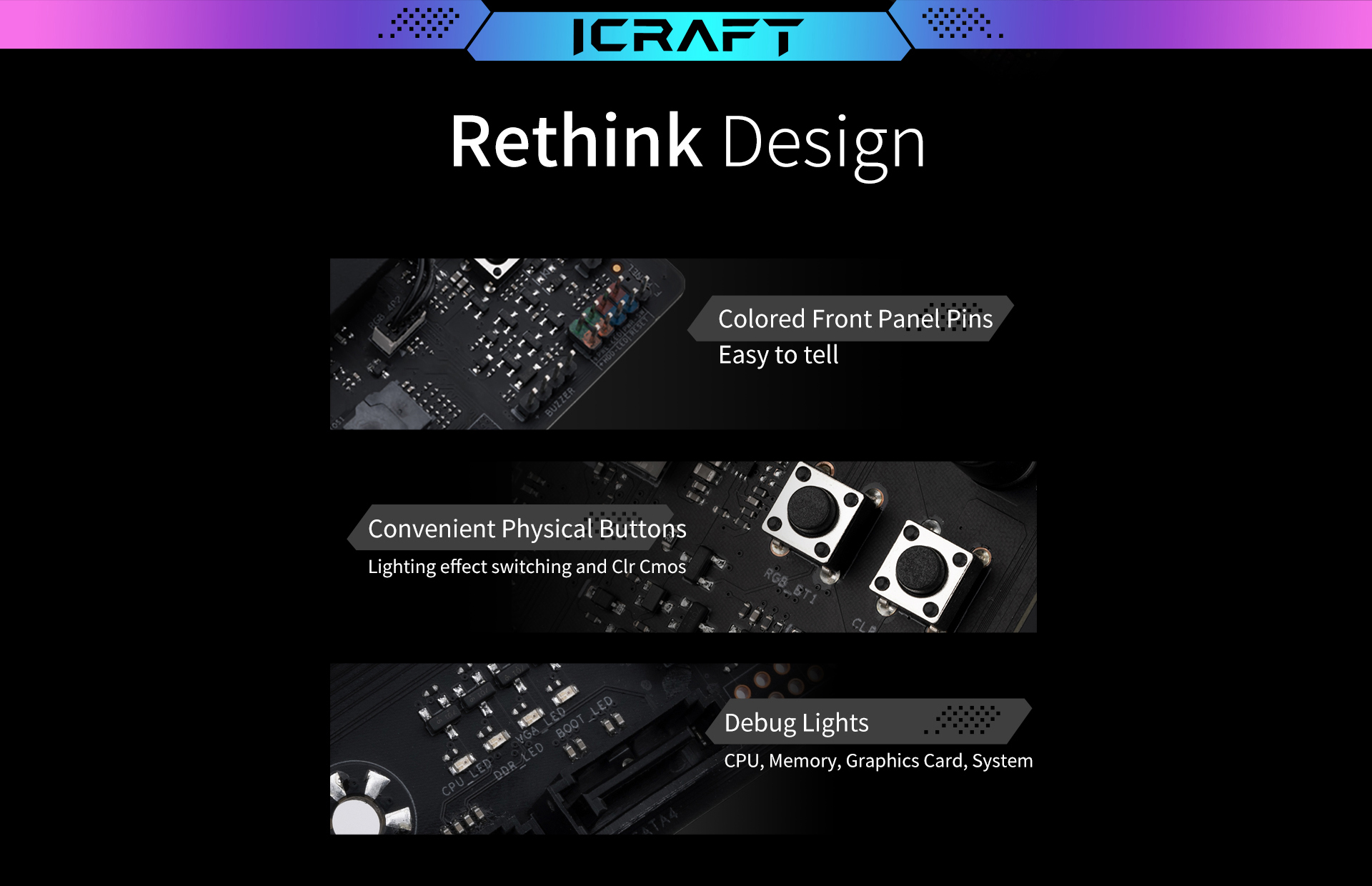

Quick Maintenance Debug Light&CLR CMOS

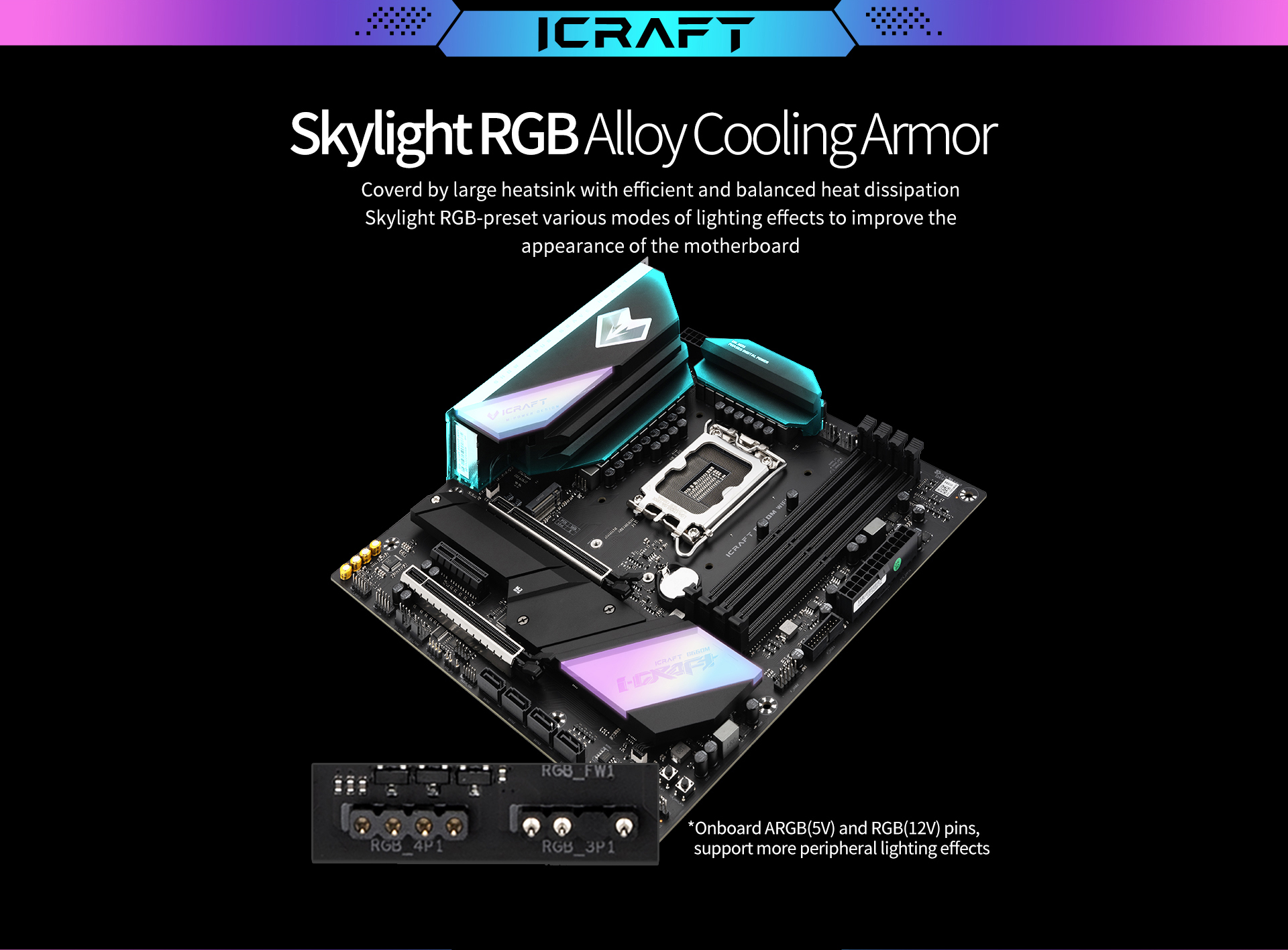

RGB 1*ARGB(3Pin,5V)+1*NRGB(4Pin, 12V)
WIFI Intel AX211 WIFI6E(bluetooth 5.2)
Other Functions 4*PWM Fan Interface(4 Pin)
