• form factor
• Micro-ATX

• chipset
• Intel B250

• CPU

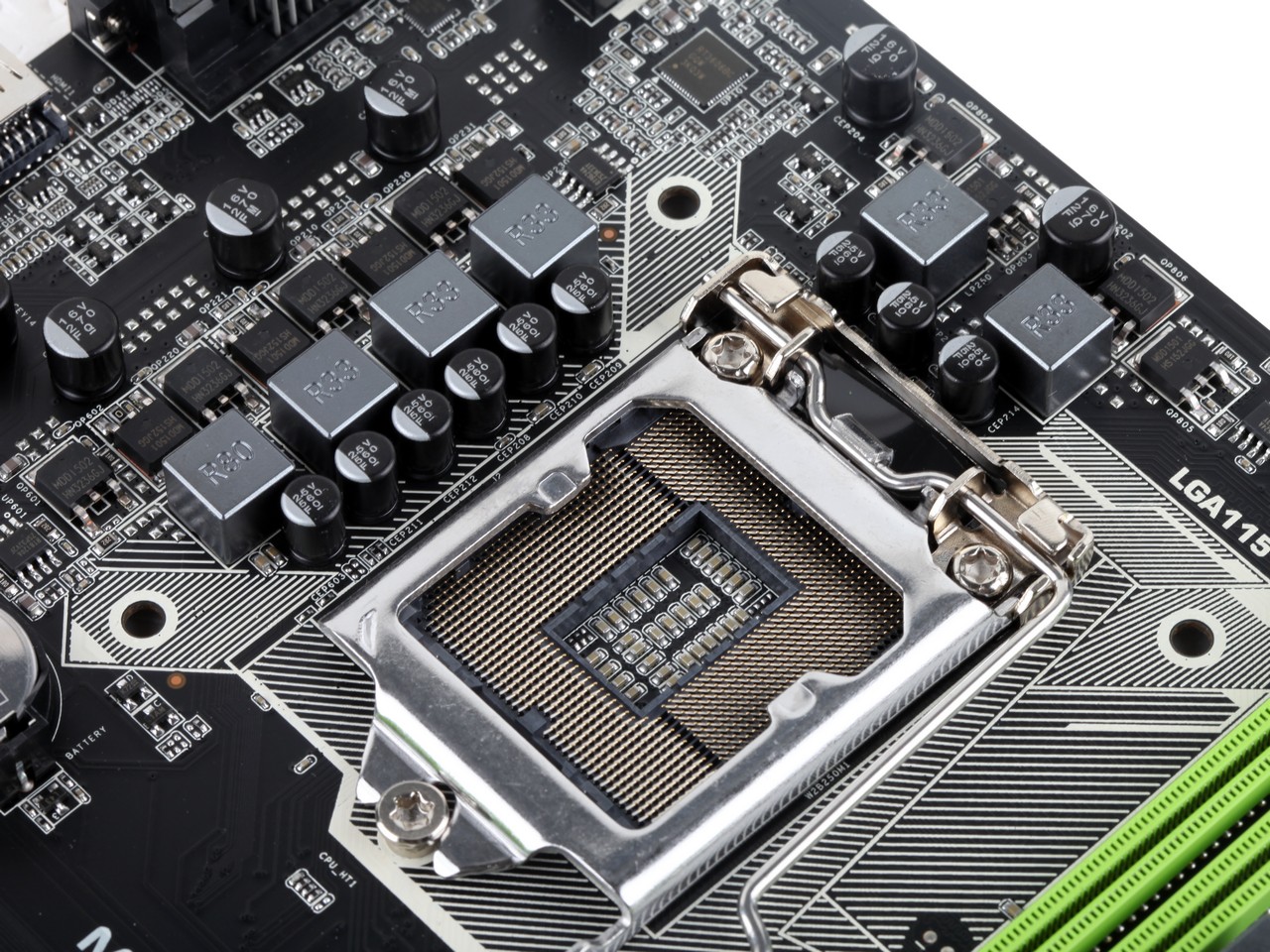

• sixth, seventh generation Core i7/i5/i3/Pentium/Celeron（TDP:100W）

• memory

• dual channel DDR4，2400/2133MHz memory (2400MHz memory can be used with seventh generation CPU only)

• LAN
• Realtek RTL8111F 1000Mbit LAN chip

• onboard graphics
• onboard graphics on CPU (CPU supports)

expansion slots

• storage interface

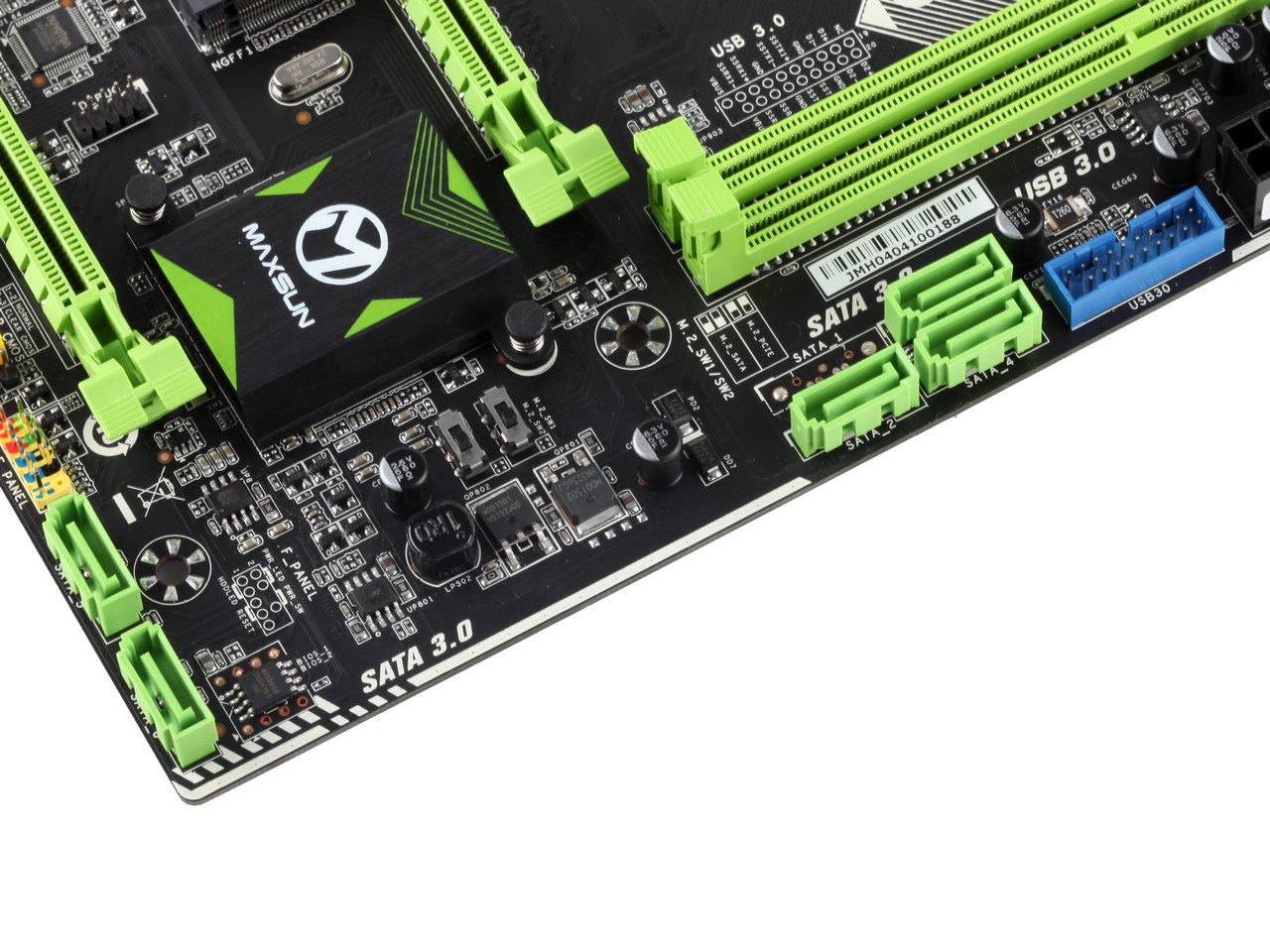

• 5*SATA3.0，1*M.2(SATA3.0/PCI-E standard)

• PCI-E slots

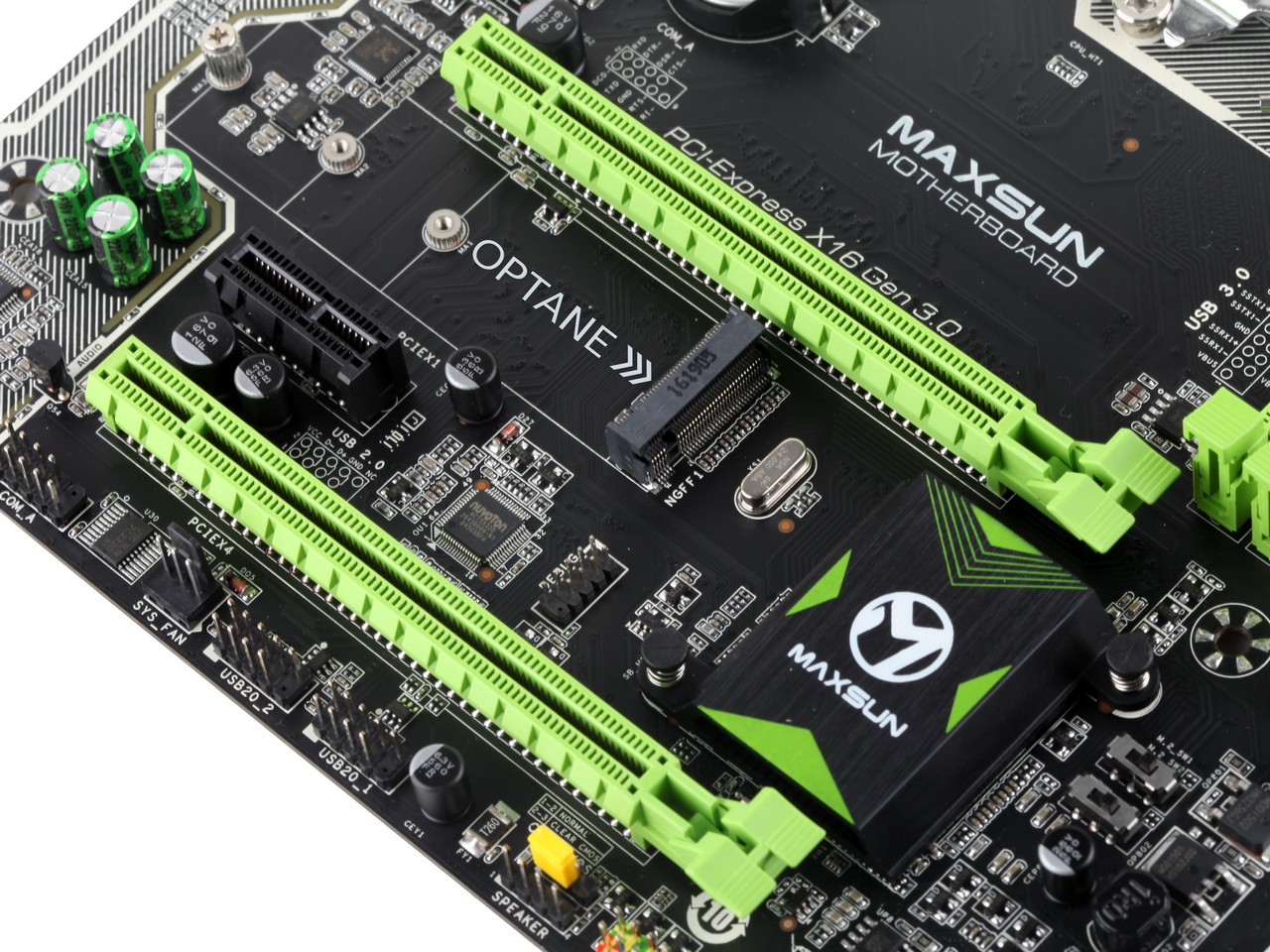

• 2*PCI-E  1* PCI-E X1

I/O connectors

• PS/2
• 1 port (keyboard & mouse)

• USB connectors

• 6*USB3.0(2*front, 4*back), 6*USB2.0(4*front, 2*back)

• audio jacks
• 6 channels support

• video interface
• VGA、DVI、HDMI

• expansion ports
• 4个USB2.0，2个USB3.0

other specs

• power connector
• 24+4pin

• features
• M-ATX form factor design, fog-like black PCB with high quality heat sink， support Optane, Dual PCI-E slots, audio optimization, LED lighting

• accessories
• manual, CD driver, SATA cable, back plate
