• form factor
• Micro-ATX

• chipset
• Intel B360

• CPU
• 8th generation Core i7/i5/i3/Pentium/Celeron（TDP:135W）

• memory

• dual channel DDR4，2600/2400/2133MHz memory

• LAN
• Realtek RTL8111F 1000Mbit LAN chip

• onboard graphics
• onboard graphics on CPU (CPU supports)

expansion slots

• storage interface

• 5*SATA3.0，2*M.2(1*SATA3.0/PCI-E standard,1*PCIE standard)

• PCI-E slots
• 1*PCI-E  1* PCI-E X1

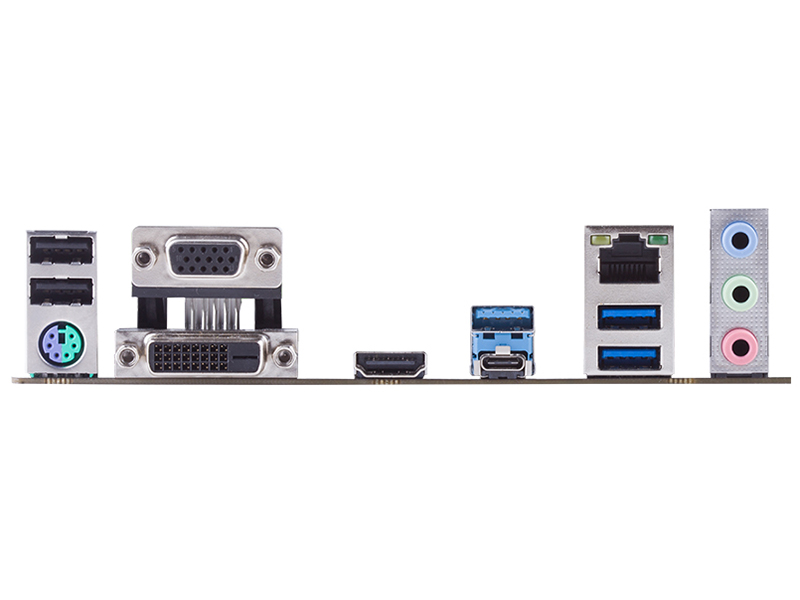

I/O connectors

• PS/2
• 1 port (keyboard & mouse)

• USB connectors

• 4*USB3.1 Gen 2(1*TYPE-C), 2*USB2.0

• audio jacks
• 6 channels support

• video interface
• VGA、DVI、HDMI

• expansion ports
• 4*USB2.0，2*USB3.1 Gen1

other specs

• power connector
• 24+8pin

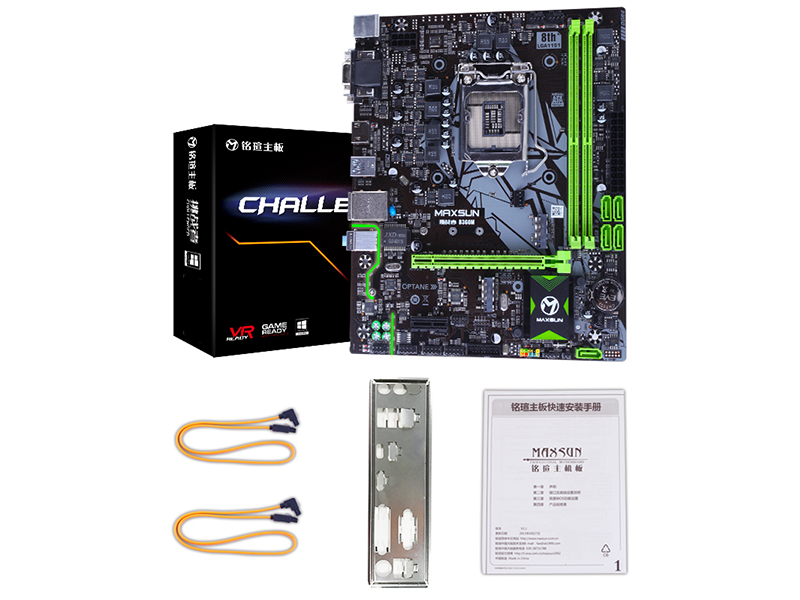

• accessories
• manual, SATA cable, back plate
