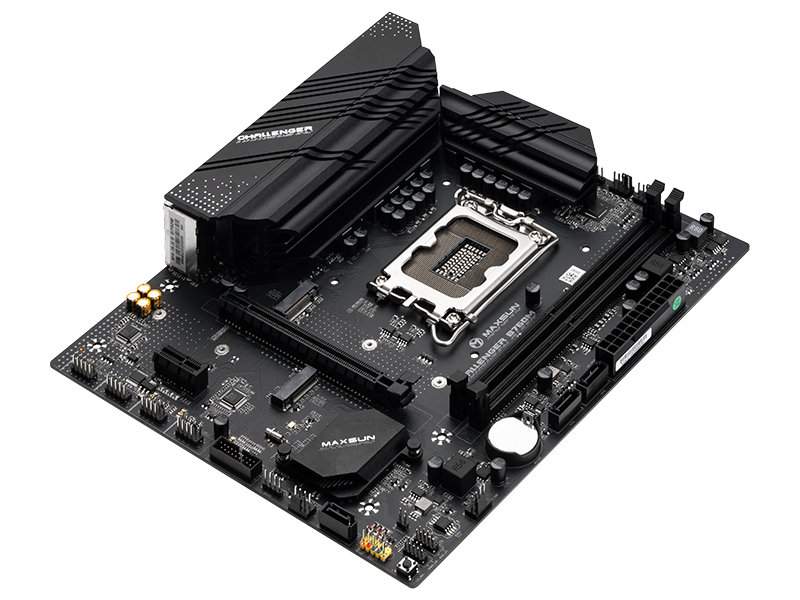

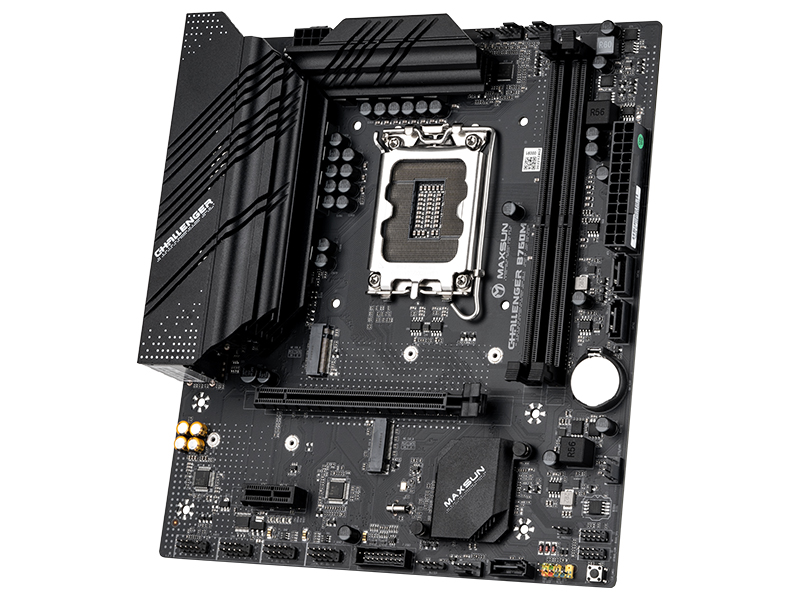

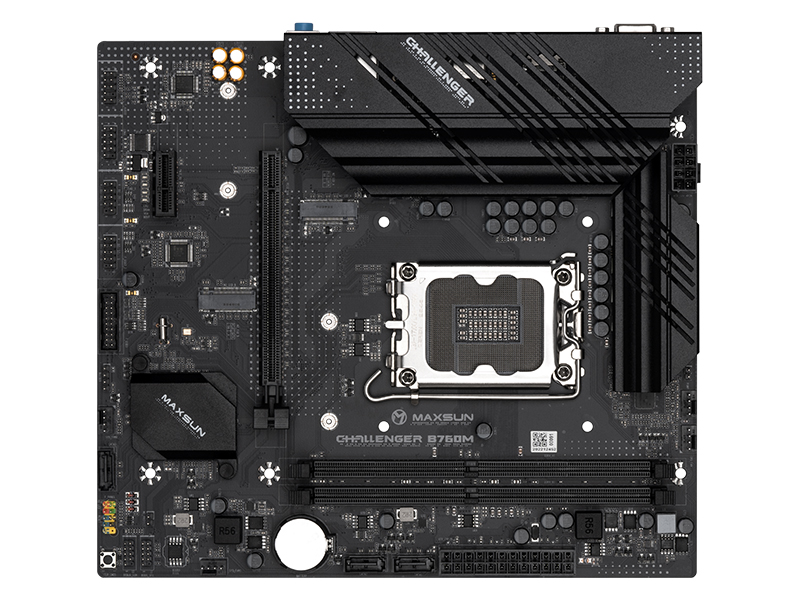

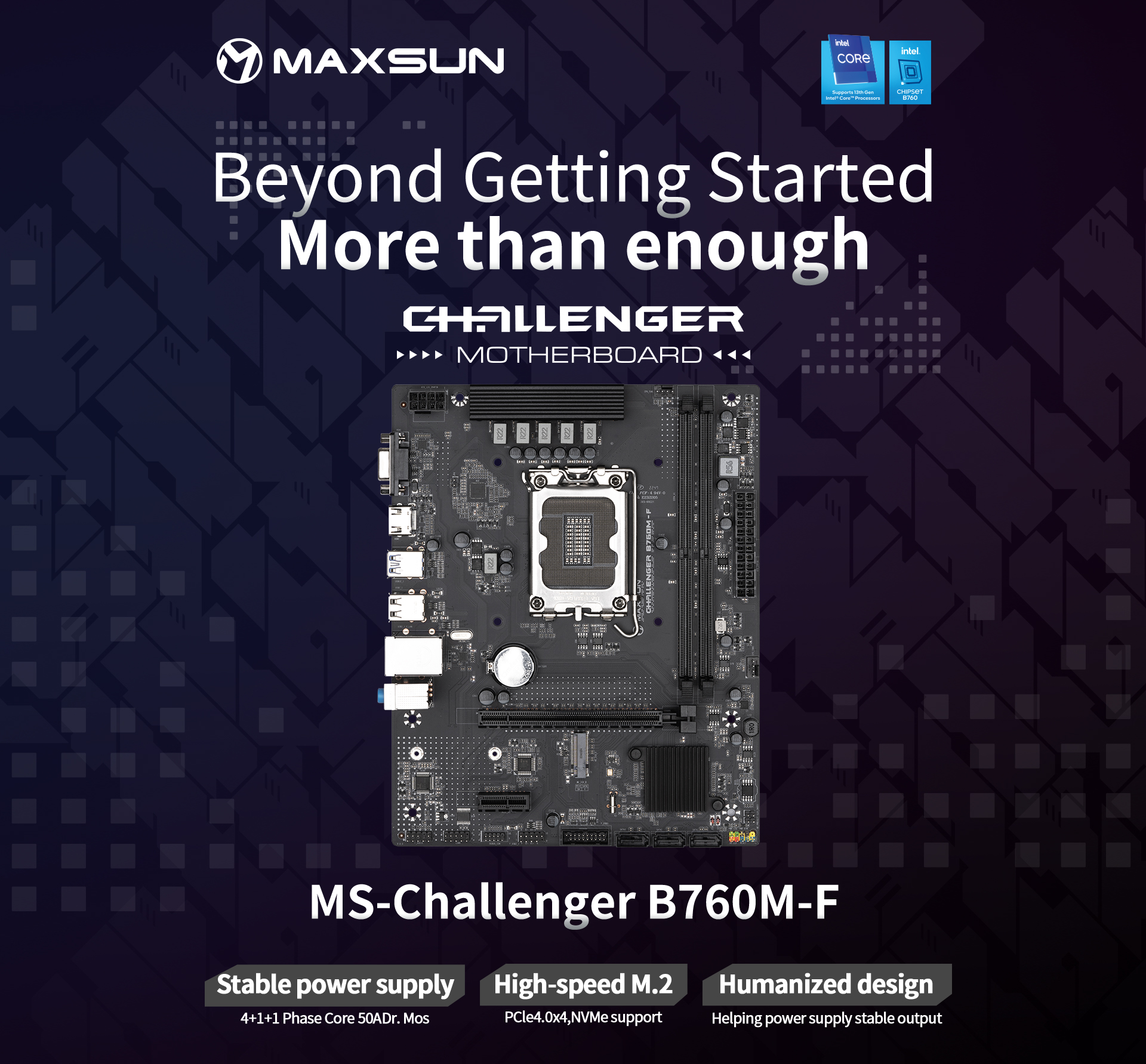

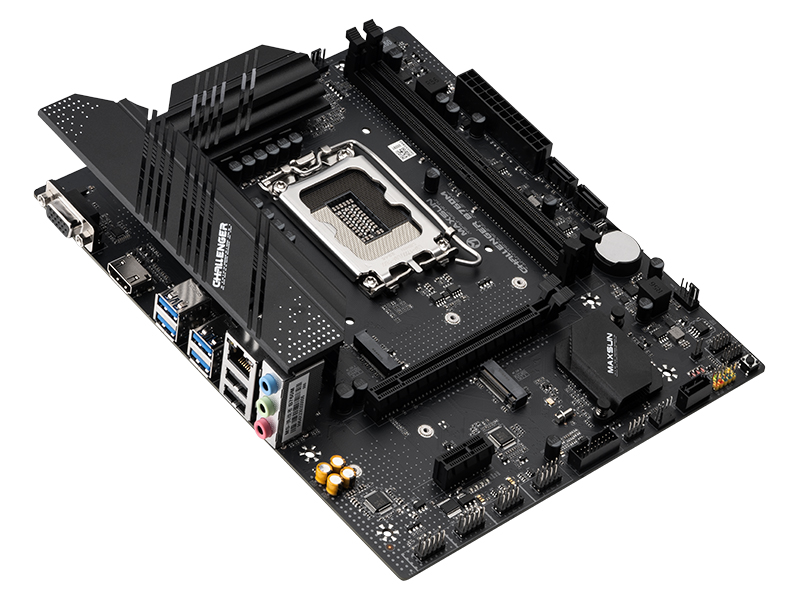

MS-Challenger B760M-F

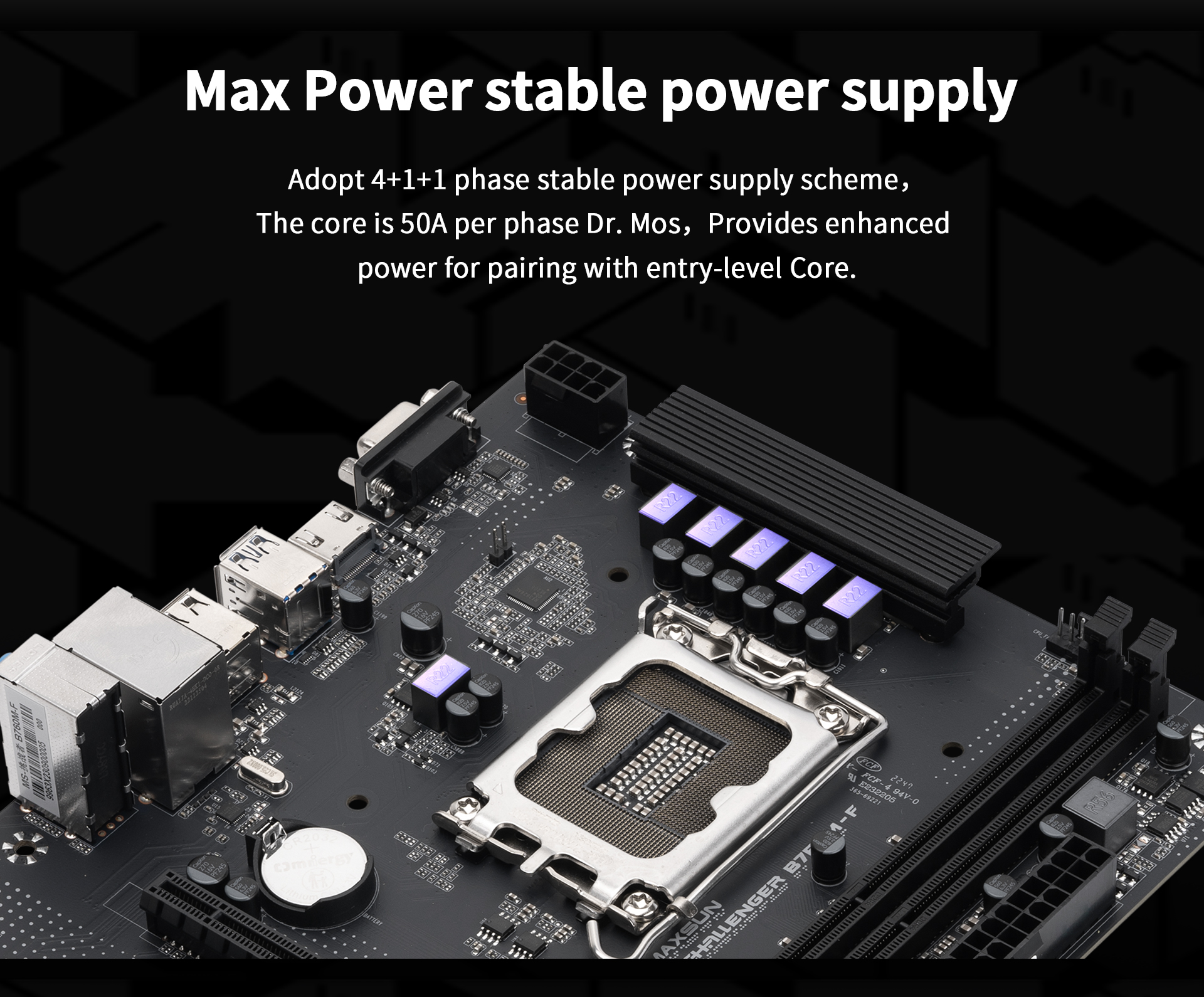

4+1+1 phases power supply design
Core 50A Dr.Mos
Alloy MOS heat dissipation

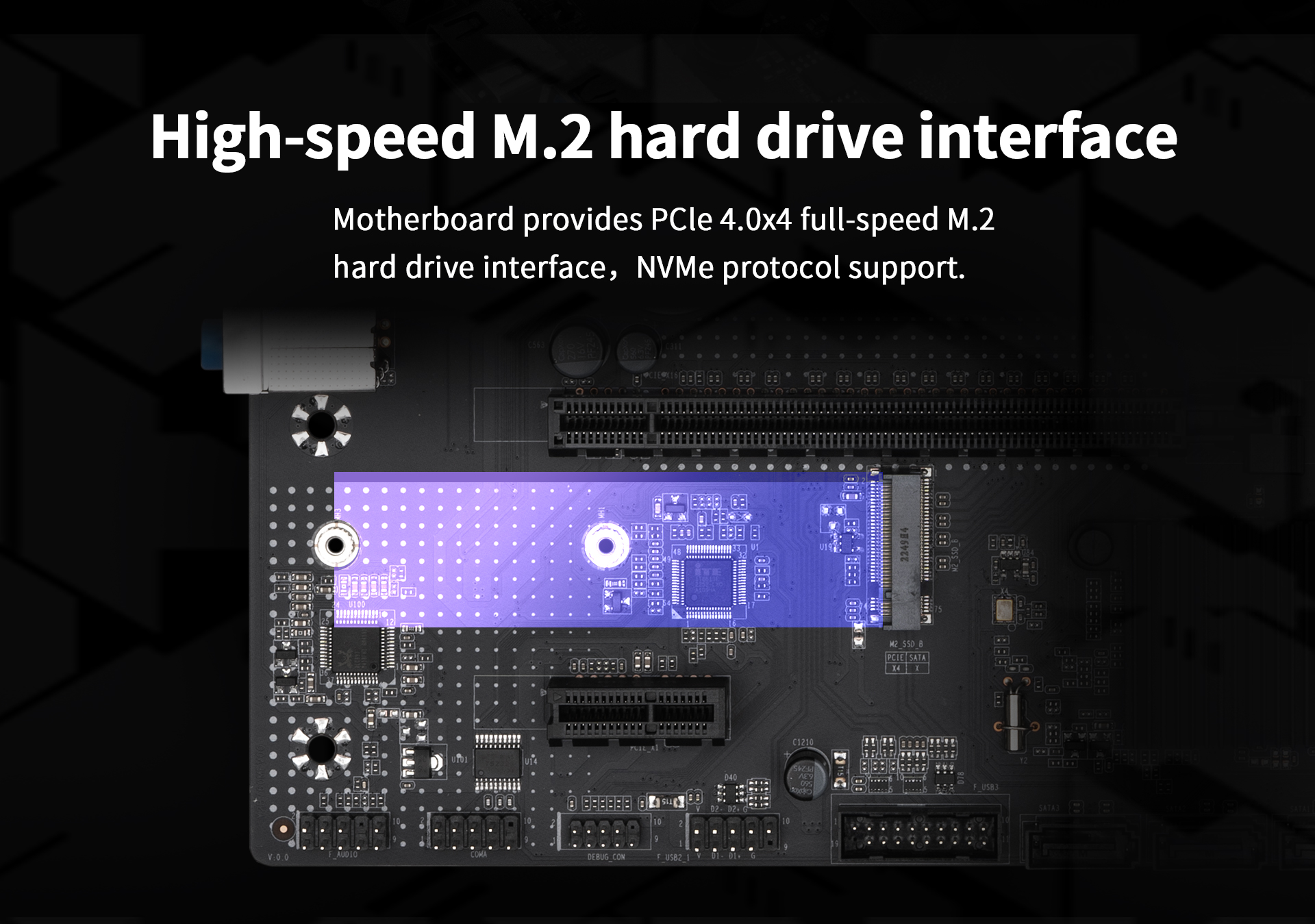

Full speed PCIe4.0x4 M.2
Debug LED

Description |Specifications |Driver/BIOS

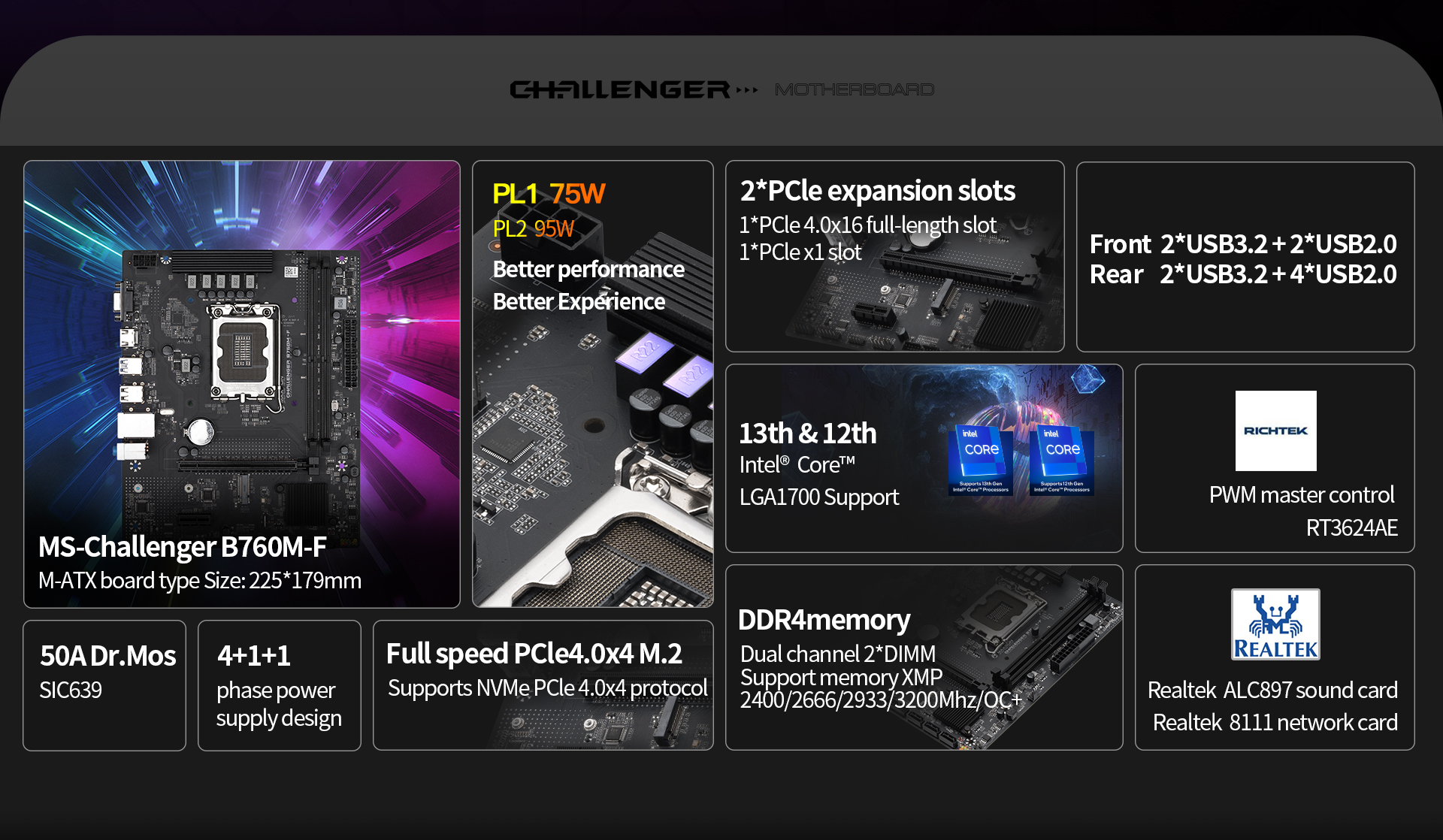

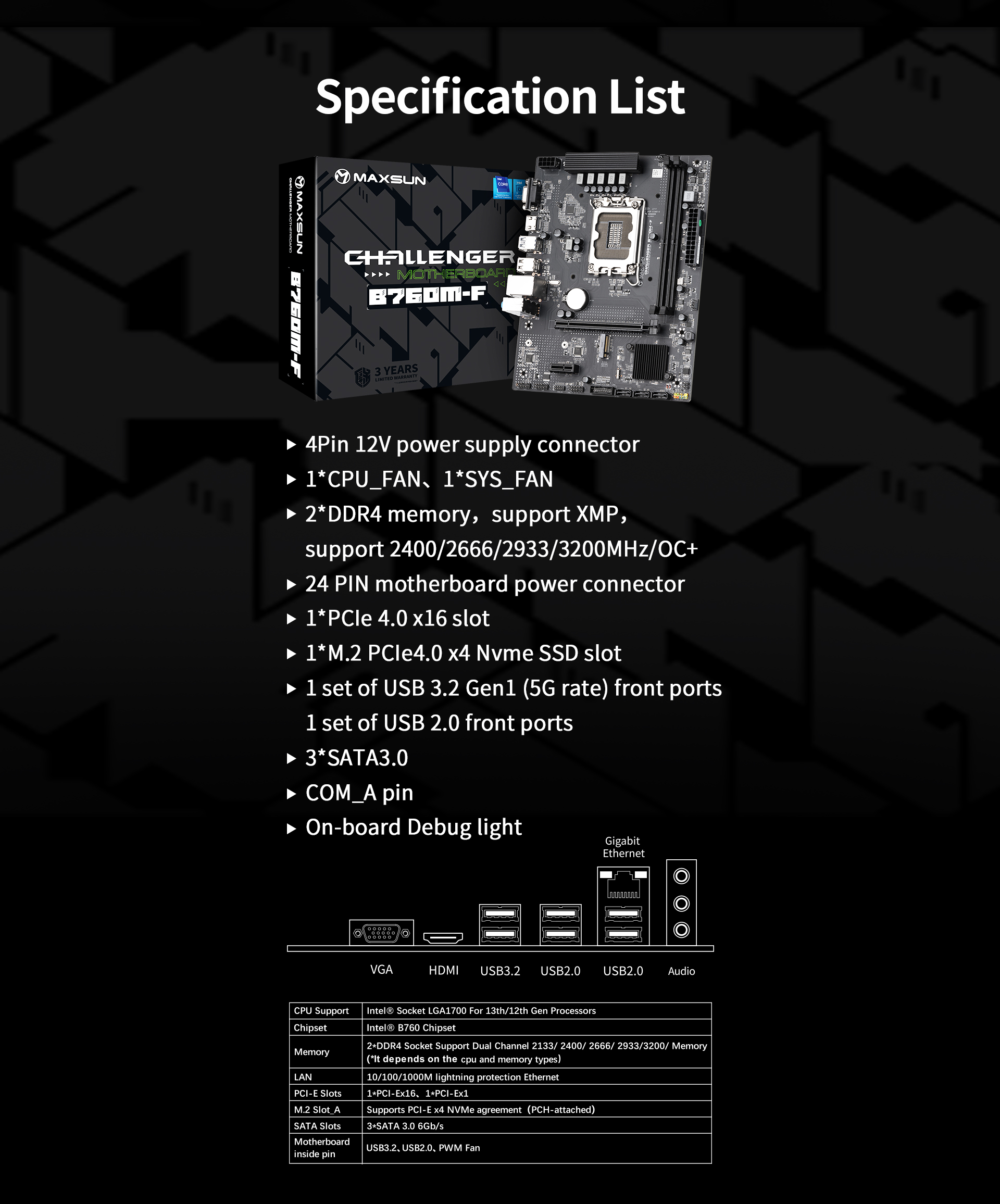

PRODUCT SPECIFICATIONS Challenger B760M-F
Chipset/Socket Intel B760 / LGA 1700
Form Factor mATX (22.5*17.9cm)

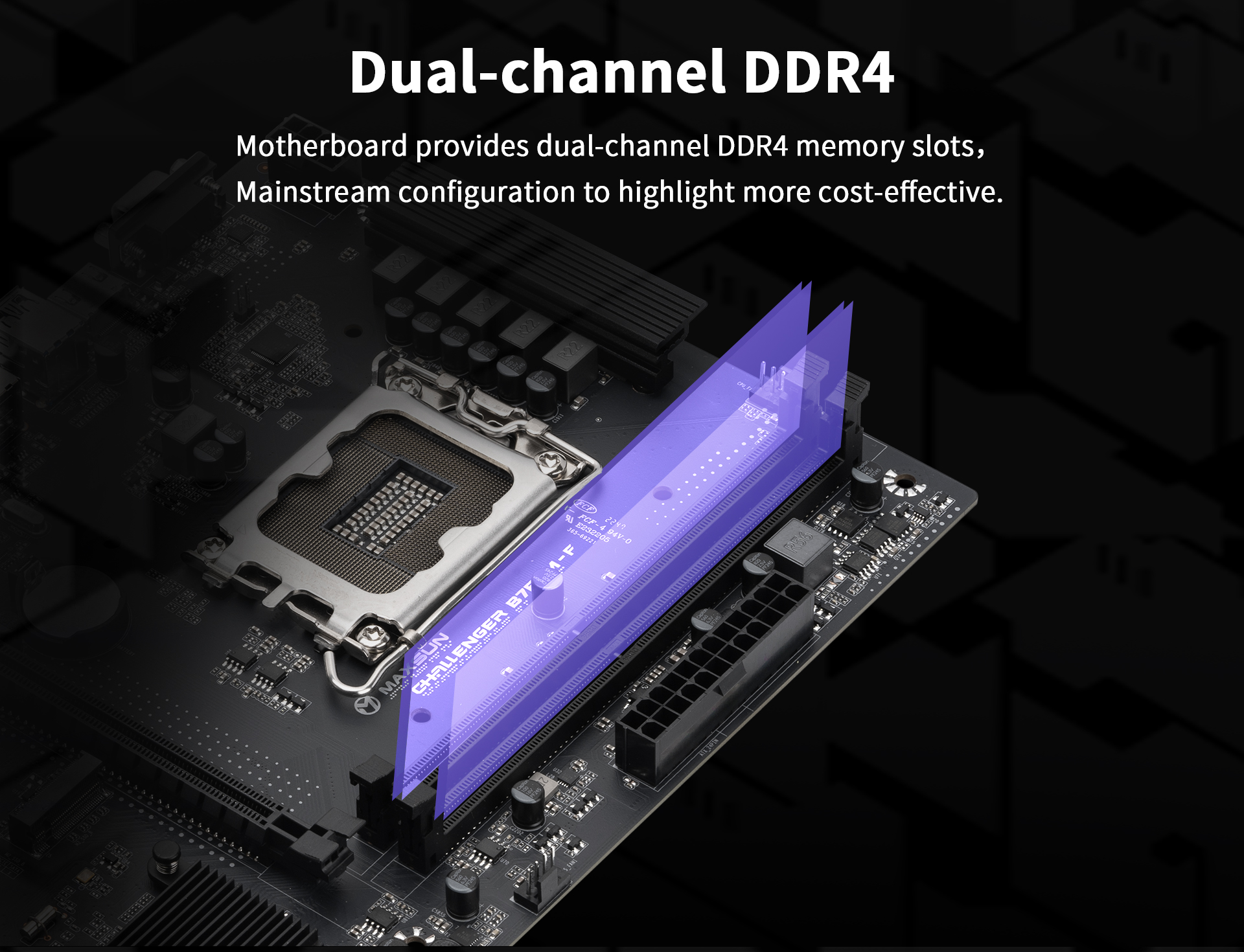

Memory Support 2*DDR4

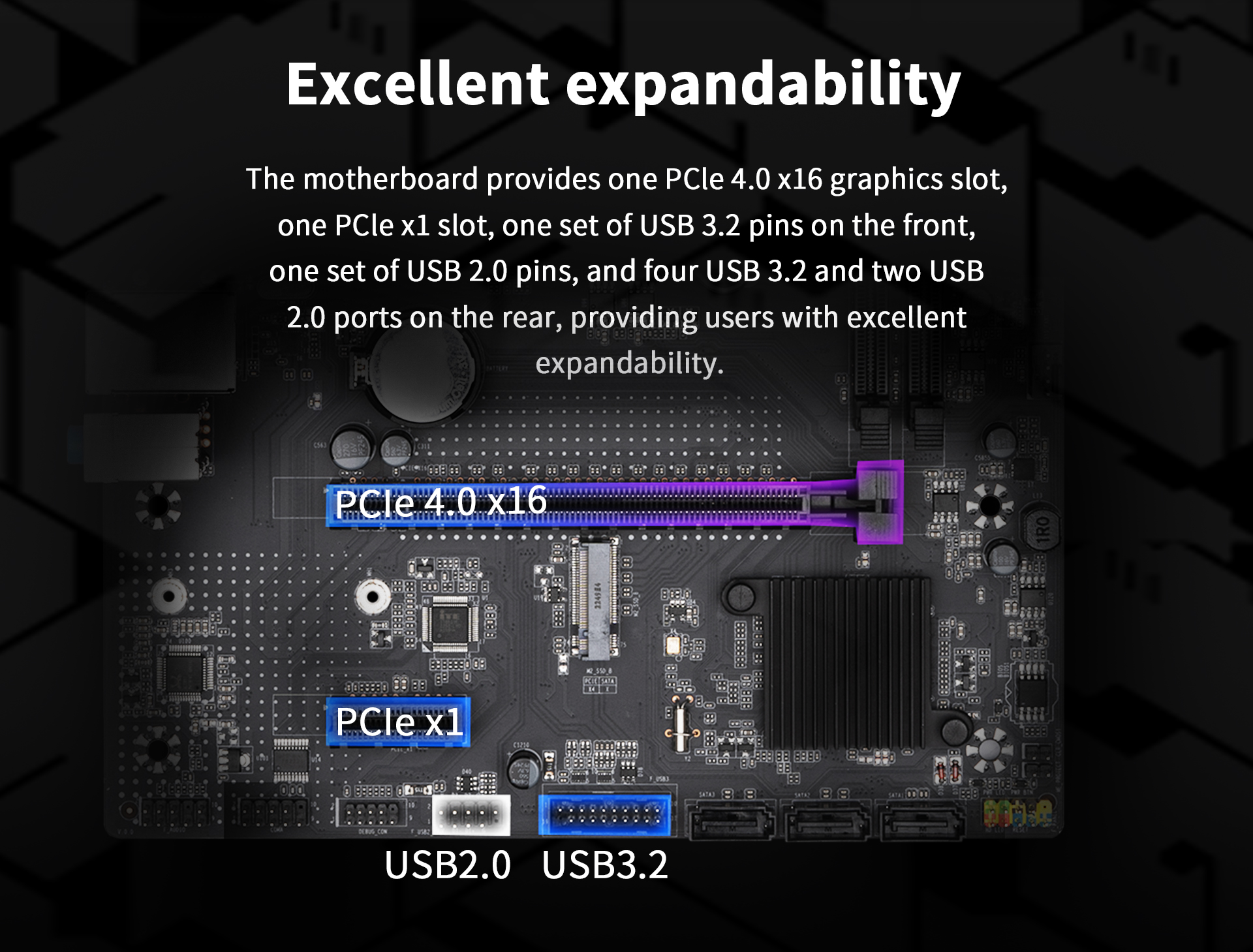

PCIe 1*PCIE4.0 x16,1*PCIE3.0 x1
Power Support 6 Power Stages Rated for 50A Dr.Mos
M.2 Slots 1*PCIE4.0 x4(2280)
SATA Interface 3*SATA3(6G)

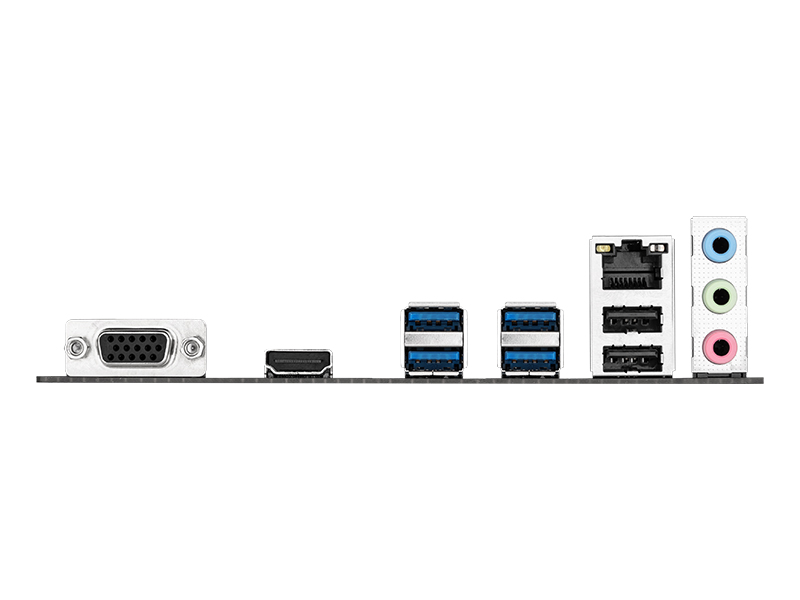

Video  1*HDMI, 1*VGA
USB(rear)  2*USB3.2, 4*USB2.0
USB(front) 2*USB3.2, 2*USB2.0
Audio/Ethernet HD Audio/Gigabit Ethernet
Quick Maintenance Debug LED
Other Functions 3*Fan Interface(4 Pin)
